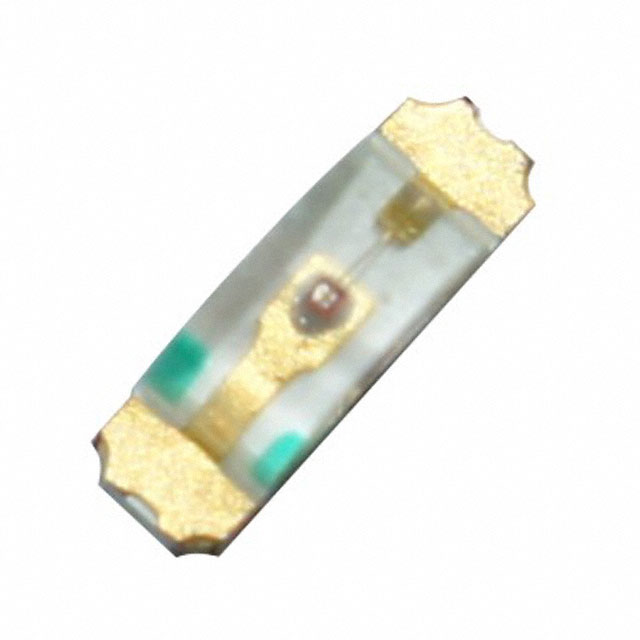

QBLP615-AG

Active

QT Brightek (QTB)

LED YLW-GRN CLEAR 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED YLW-GRN CLEAR 1206 SMD R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow-Green 570nm LED Indication - Discrete 2.5V 2-SMD, 1206

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED YLW-GRN CLEAR 1206 SMD R/A

Part	Mounting Type	Supplier Device Package	Millicandela Rating	Lens Transparency	Package / Case	Height (Max) [Max] [z]	Lens Style	Lens Size [x]	Lens Size [y]	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
QT Brightek (QTB) QBLP615-AG	Surface Mount, Right Angle	1206	63 mcd	Clear	2-SMD, 1206	1 mm	Rectangle with Domed Top	2 mm	1 mm	20 mA	Yellow-Green	1.4 mm	3.2 mm	570 nm	2.5 V	150 °	Standard	Colorless
QT Brightek (QTB) QBLP615-RGB-3053	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm		2 V, 2.7 V, 2.8 V	150 °	Common Anode	Colorless	363 mcd	116 mcd	63 mcd	527 nm	470 nm	620 nm	6 mA	7 mA	9.8 mA
QT Brightek (QTB) QBLP615-RGB-2943	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm			150 °	Common Anode	Colorless	620 mcd	190 mcd	110 mcd				20 mA	20 mA	20 mA	470 nm, 525 nm, 620 nm	3.1 V	3.1 V	2 V
