QBLP615-RGB-2943

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP615-RGB-2943	QBLP615 Series

Color	Red, Green, Blue	Yellow-Green, Red, Green, Blue
Configuration	Common Anode	Standard, Common Anode
Current - Test	-	20 mA
Current - Test [custom]	20 mA	6 - 20 mA
Current - Test [custom]	20 mA	9.8 - 20 mA
Current - Test [custom]	20 mA	7 - 20 mA
Height (Max) [Max] [z]	1.1 mm	1 - 1.1 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2 mm	2 mm
Lens Size [y]	1 mm	1 mm
Lens Style	Rectangle with Domed Top	Rectangle with Domed Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	-	63 mcd
Millicandela Rating [custom]	110 mcd	63 - 110 mcd
Millicandela Rating [custom]	620 mcd	363 - 620 mcd
Millicandela Rating [custom]	190 mcd	116 - 190 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Package / Case	1206 (3216 Metric)	2-SMD, 1206, 1206 (3216 Metric)
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	1.3 mm	1.3 - 1.4 mm
Supplier Device Package	1206	1206
Viewing Angle	150 °	150 °
Voltage - Forward (Vf) (Typ)	-	2 - 2.8 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2 V	2 V
Wavelength - Dominant	-	570 nm
Wavelength - Dominant	-	527 nm
Wavelength - Dominant	-	470 nm
Wavelength - Dominant	-	620 nm
Wavelength - Dominant [custom]	470 nm, 525 nm, 620 nm	470 - 620 nm

LED YLW-GRN CLEAR 1206 SMD R/A

Part	Mounting Type	Supplier Device Package	Millicandela Rating	Lens Transparency	Package / Case	Height (Max) [Max] [z]	Lens Style	Lens Size [x]	Lens Size [y]	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
QT Brightek (QTB) QBLP615-AG	Surface Mount, Right Angle	1206	63 mcd	Clear	2-SMD, 1206	1 mm	Rectangle with Domed Top	2 mm	1 mm	20 mA	Yellow-Green	1.4 mm	3.2 mm	570 nm	2.5 V	150 °	Standard	Colorless
QT Brightek (QTB) QBLP615-RGB-3053	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm		2 V, 2.7 V, 2.8 V	150 °	Common Anode	Colorless	363 mcd	116 mcd	63 mcd	527 nm	470 nm	620 nm	6 mA	7 mA	9.8 mA
QT Brightek (QTB) QBLP615-RGB-2943	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm			150 °	Common Anode	Colorless	620 mcd	190 mcd	110 mcd				20 mA	20 mA	20 mA	470 nm, 525 nm, 620 nm	3.1 V	3.1 V	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

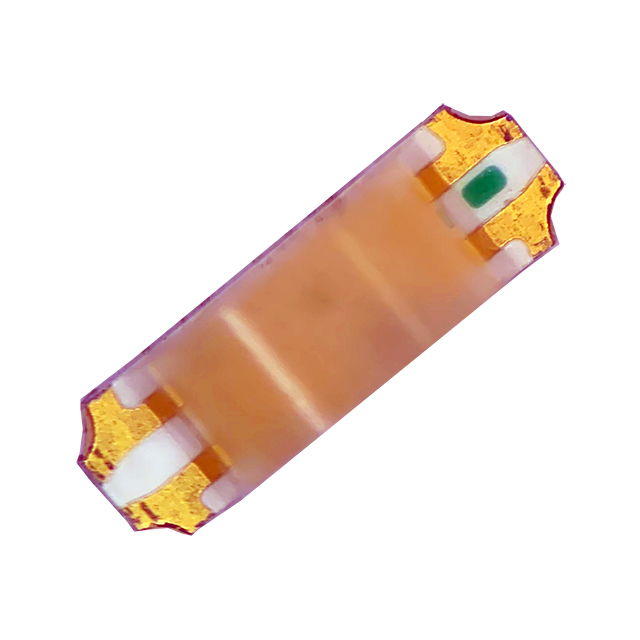

Red, Green, Blue (RGB) 620nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 1206 (3216 Metric)
