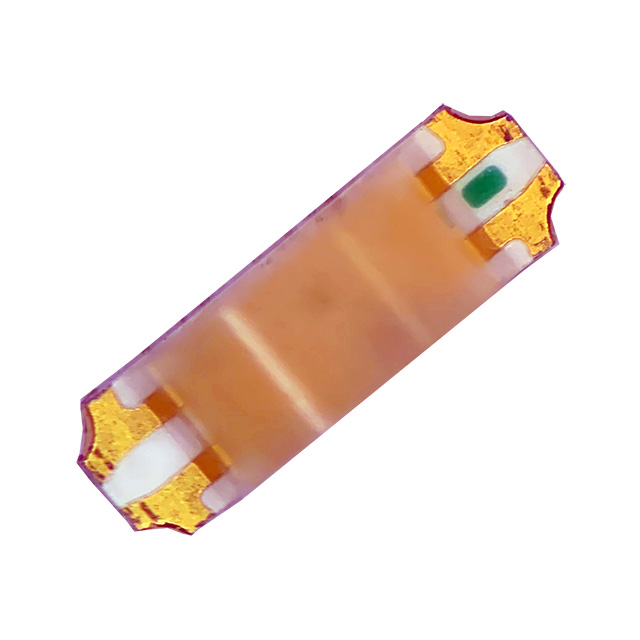

QBLP615-RGB-3053

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.8V Blue 1206 (3216 Metric)

Technical documentation and resources

Part	Mounting Type	Supplier Device Package	Millicandela Rating	Lens Transparency	Package / Case	Height (Max) [Max] [z]	Lens Style	Lens Size [x]	Lens Size [y]	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
QT Brightek (QTB) QBLP615-AG	Surface Mount, Right Angle	1206	63 mcd	Clear	2-SMD, 1206	1 mm	Rectangle with Domed Top	2 mm	1 mm	20 mA	Yellow-Green	1.4 mm	3.2 mm	570 nm	2.5 V	150 °	Standard	Colorless
QT Brightek (QTB) QBLP615-RGB-3053	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm		2 V, 2.7 V, 2.8 V	150 °	Common Anode	Colorless	363 mcd	116 mcd	63 mcd	527 nm	470 nm	620 nm	6 mA	7 mA	9.8 mA
QT Brightek (QTB) QBLP615-RGB-2943	Surface Mount, Right Angle	1206		Diffused	1206 (3216 Metric)	1.1 mm	Rectangle with Domed Top	2 mm	1 mm		Blue, Green, Red	1.3 mm	3.2 mm			150 °	Common Anode	Colorless	620 mcd	190 mcd	110 mcd				20 mA	20 mA	20 mA	470 nm, 525 nm, 620 nm	3.1 V	3.1 V	2 V
