CDCLVD2104RHDR

Active

Texas Instruments

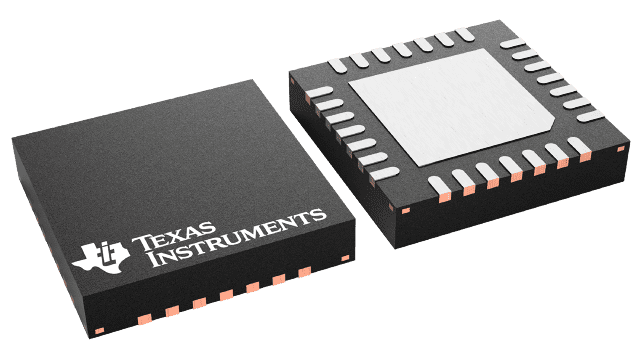

LOW JITTER, DUAL 1:4 UNIVERSAL-TO-LVDS BUFFER 28-VQFN -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDual 1:4 Low Additive Jitter LVDS Buffer datasheet (Rev. A)Datasheet

CDCLVD2104RHDR

Active

Texas Instruments

LOW JITTER, DUAL 1:4 UNIVERSAL-TO-LVDS BUFFER 28-VQFN -40 TO 85

Deep-Dive with AI

DocumentsDual 1:4 Low Additive Jitter LVDS Buffer datasheet (Rev. A)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDCLVD2104RHDR	CDCLVD2104 Series

Differential - Input:Output [custom]	True	True
Differential - Input:Output [custom]	True	True
Frequency - Max [Max]	800 MHz	800 MHz
Input	LVPECL, LVCMOS, LVDS	LVPECL, LVCMOS, LVDS
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	LVDS	LVDS
Package / Case	28-VFQFN Exposed Pad	28-VFQFN Exposed Pad
Ratio - Input:Output [custom]	4	4
Ratio - Input:Output [custom]	1	1
Supplier Device Package	28-VQFN (5x5)	28-VQFN (5x5)
Type	Fanout Buffer (Distribution)	Fanout Buffer (Distribution)
Voltage - Supply [Max]	2.625 V	2.625 V
Voltage - Supply [Min]	2.375 V	2.375 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	N/A	1	$ 8.52
		10	$ 6.61
		25	$ 6.13
		100	$ 5.61
		250	$ 5.36
		500	$ 5.21
		1000	$ 5.09
		3000	$ 4.93
Digikey	Cut Tape (CT)	1	$ 8.88
		10	$ 8.03
		25	$ 7.65
		100	$ 6.64
		250	$ 6.35
		500	$ 5.79
		1000	$ 5.04
	Digi-Reel®	1	$ 8.88
		10	$ 8.03
		25	$ 7.65
		100	$ 6.64
		250	$ 6.35
		500	$ 5.79
		1000	$ 5.04
	Tape & Reel (TR)	3000	$ 4.85
Mouser Electronics	N/A	1	$ 8.52
		10	$ 6.61
		25	$ 6.13
		100	$ 5.61
		250	$ 5.36
		500	$ 5.20
		1000	$ 5.04
		3000	$ 4.86
Texas Instruments	LARGE T&R	1	$ 6.80
		100	$ 5.54
		250	$ 4.36
		1000	$ 3.70

CDCLVD2104 Series

Low jitter, dual 1:4 universal-to-LVDS buffer

Part	Mounting Type	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Output	Input	Frequency - Max [Max]	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Number of Circuits	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]
Texas Instruments CDCLVD2104RHDT	Surface Mount	28-VQFN (5x5)	28-VFQFN Exposed Pad	-40 °C	85 °C	Fanout Buffer (Distribution)	LVDS	LVCMOS, LVDS, LVPECL	800 MHz	4	1	2			2.375 V	2.625 V
Texas Instruments CDCLVD2104RHDR	Surface Mount	28-VQFN (5x5)	28-VFQFN Exposed Pad	-40 °C	85 °C	Fanout Buffer (Distribution)	LVDS	LVCMOS, LVDS, LVPECL	800 MHz	4	1	2			2.375 V	2.625 V

Description

General part information

CDCLVD2104 Series

The CDCLVD2104 clock buffer distributes two clock inputs (IN0, IN1) to a total of 8 pairs of differential LVDS clock outputs (OUT0, OUT7). Each buffer block consists of one input and 4 LVDS outputs. The inputs can either be LVDS, LVPECL, or LVCMOS.

The CDCLVD2104 is specifically designed for driving 50-transmission lines. If the input is in single ended mode, the appropriate bias voltage (VAC_REF) should be applied to the unused negative input pin.

Using the control pin (EN), outputs can be either disabled or enabled. If the EN pin is left open two buffers with all outputs are enabled, if switched to a logical "0" both buffers with all outputs are disabled (static logical "0"), if switched to a logical "1", one buffer with four outputs is disabled and another buffer with four outputs is enabled. The part supports a fail safe function. It incorporates an input hysteresis, which prevents random oscillation of the outputs in absence of an input signal.
