145104-05-36.00
ActiveAmphenol RF

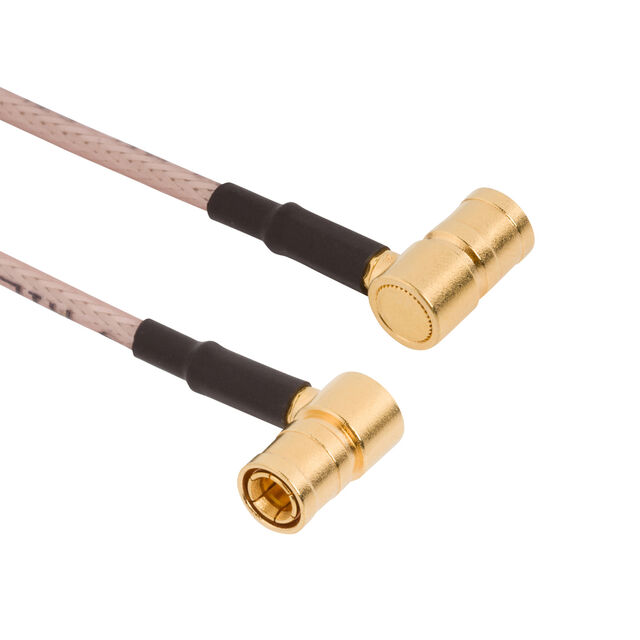

CBL ASSY SMB MINI PLUG-PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
145104-05-36.00
ActiveAmphenol RF
CBL ASSY SMB MINI PLUG-PLUG 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 145104-05-36.00 |
|---|---|
| 1st Connector | Right Angle, SMB Mini Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Mini Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 75 Ohms |
| Cable Type | RG-179 |
| Color | Copper |
| Connector Impedance | 75 Ohms |
| Features | Shielded |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 75 Ohms |
| Style | SMB Mini to SMB Mini |
145104 Series
| Part | 1st Connector | 2nd Connector Mounting Type | Cable Type | Style | 1st Connector Mounting Type | Cable Impedance | Features | 2nd Contact Gender | 1st Contact Gender | 2nd Connector | Length | Length | Color | Overall Impedance | Connector Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-316 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 24 " | 609.6 mm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Mini Plug | Free Hanging (In-Line) | RG-179 | SMB Mini to SMB Mini | Free Hanging (In-Line) | 75 Ohms | Shielded | Female | Female | SMB Mini Plug Right Angle | 24 " | 609.6 mm | Copper | 75 Ohms | 75 Ohms |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-316 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 36 in | 91.44 cm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-316 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 29.53 " | 750 mm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-316 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 19.69 " | 50 cm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-178 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 12 " | 304.8 mm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-178 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 24 " | 609.6 mm | Copper | 50 Ohms | |
Amphenol RF | Right Angle SMB Mini Plug | Free Hanging (In-Line) | RG-179 | SMB Mini to SMB Mini | Free Hanging (In-Line) | 75 Ohms | Shielded | Female | Female | SMB Mini Plug Right Angle | 36 in | 91.44 cm | Copper | 75 Ohms | 75 Ohms |
Amphenol RF | Right Angle SMB Plug | Free Hanging (In-Line) | RG-178 | SMB to SMB | Free Hanging (In-Line) | 50 Ohms | Shielded | Female | Female | SMB Plug Right Angle | 36 in | 91.44 cm | Copper | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 33.30 | |
Description
General part information
145104 Series
Cable Assembly Coaxial SMB Mini to SMB Mini RG-179 36.00" (914.40mm)
Documents
Technical documentation and resources
No documents available
