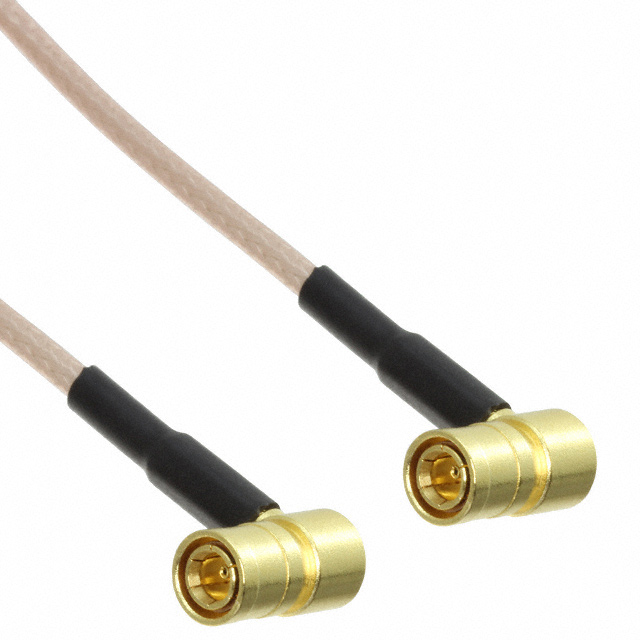

145104-05-24.00

Active

Amphenol RF

COAX CBL SMB MINI-SMB MINI 24"

Deep-Dive with AI

Search across all available documentation for this part.

145104-05-24.00

Active

Amphenol RF

COAX CBL SMB MINI-SMB MINI 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	145104-05-24.00

1st Connector	Right Angle, SMB Mini Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Mini Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	75 Ohms
Cable Type	RG-179
Color	Copper
Connector Impedance	75 Ohms
Features	Shielded
Length	24 "
Length	609.6 mm
Overall Impedance	75 Ohms
Style	SMB Mini to SMB Mini

145104 Series

Part	1st Connector	2nd Connector Mounting Type	Cable Type	Style	1st Connector Mounting Type	Cable Impedance	Features	2nd Contact Gender	1st Contact Gender	2nd Connector	Length	Length	Color	Overall Impedance	Connector Impedance
Amphenol RF 145104-01-24.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	24 "	609.6 mm	Copper	50 Ohms
Amphenol RF 145104-05-24.00	Right Angle SMB Mini Plug	Free Hanging (In-Line)	RG-179	SMB Mini to SMB Mini	Free Hanging (In-Line)	75 Ohms	Shielded	Female	Female	SMB Mini Plug Right Angle	24 "	609.6 mm	Copper	75 Ohms	75 Ohms
Amphenol RF 145104-01-36.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	36 in	91.44 cm	Copper	50 Ohms
Amphenol RF 145104-01-M0.75	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	29.53 "	750 mm	Copper	50 Ohms
Amphenol RF 145104-01-M0.50	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	19.69 "	50 cm	Copper	50 Ohms
Amphenol RF 145104-08-12.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	12 "	304.8 mm	Copper	50 Ohms
Amphenol RF 145104-08-24.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	24 "	609.6 mm	Copper	50 Ohms
Amphenol RF 145104-05-36.00	Right Angle SMB Mini Plug	Free Hanging (In-Line)	RG-179	SMB Mini to SMB Mini	Free Hanging (In-Line)	75 Ohms	Shielded	Female	Female	SMB Mini Plug Right Angle	36 in	91.44 cm	Copper	75 Ohms	75 Ohms
Amphenol RF 145104-08-36.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	36 in	91.44 cm	Copper	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.29
		10	$ 32.55
		25	$ 30.51
		50	$ 29.05
		100	$ 27.67
		250	$ 25.94

Description

General part information

145104 Series

Cable Assembly Coaxial SMB Mini to SMB Mini RG-179 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
