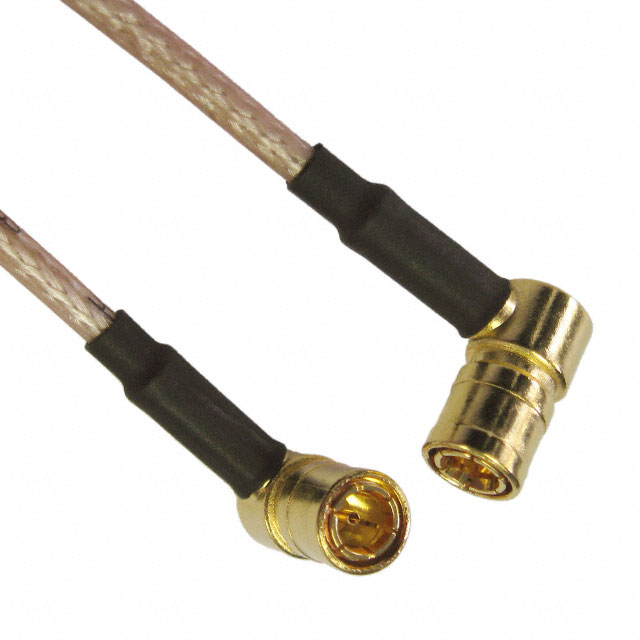

RF / COAXIAL CABLE ASSEMBLY, 90° SMB PLUG TO 90° SMB PLUG, RG316, 50 OHM, 29.53 ", 750 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN

145104-01-M0.75

Active

Amphenol RF

RF / COAXIAL CABLE ASSEMBLY, 90° SMB PLUG TO 90° SMB PLUG, RG316, 50 OHM, 29.53 ", 750 MM

Deep-Dive with AI

DocumentsManufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	145104-01-M0.75

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMB to SMB

145104 Series

Part	1st Connector	2nd Connector Mounting Type	Cable Type	Style	1st Connector Mounting Type	Cable Impedance	Features	2nd Contact Gender	1st Contact Gender	2nd Connector	Length	Length	Color	Overall Impedance	Connector Impedance
Amphenol RF 145104-01-24.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	24 "	609.6 mm	Copper	50 Ohms
Amphenol RF 145104-05-24.00	Right Angle SMB Mini Plug	Free Hanging (In-Line)	RG-179	SMB Mini to SMB Mini	Free Hanging (In-Line)	75 Ohms	Shielded	Female	Female	SMB Mini Plug Right Angle	24 "	609.6 mm	Copper	75 Ohms	75 Ohms
Amphenol RF 145104-01-36.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	36 in	91.44 cm	Copper	50 Ohms
Amphenol RF 145104-01-M0.75	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	29.53 "	750 mm	Copper	50 Ohms
Amphenol RF 145104-01-M0.50	Right Angle SMB Plug	Free Hanging (In-Line)	RG-316	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	19.69 "	50 cm	Copper	50 Ohms
Amphenol RF 145104-08-12.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	12 "	304.8 mm	Copper	50 Ohms
Amphenol RF 145104-08-24.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	24 "	609.6 mm	Copper	50 Ohms
Amphenol RF 145104-05-36.00	Right Angle SMB Mini Plug	Free Hanging (In-Line)	RG-179	SMB Mini to SMB Mini	Free Hanging (In-Line)	75 Ohms	Shielded	Female	Female	SMB Mini Plug Right Angle	36 in	91.44 cm	Copper	75 Ohms	75 Ohms
Amphenol RF 145104-08-36.00	Right Angle SMB Plug	Free Hanging (In-Line)	RG-178	SMB to SMB	Free Hanging (In-Line)	50 Ohms	Shielded	Female	Female	SMB Plug Right Angle	36 in	91.44 cm	Copper	50 Ohms
