2-520337-2

Active

TE Connectivity Raychem Cable Protection

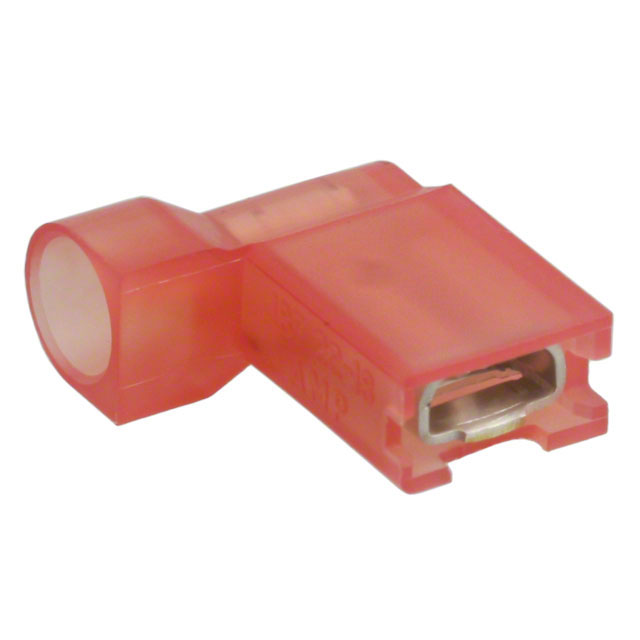

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 16.14MM TIN CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ultra-Fast Series 110, 125, 187, 205, and 250 Fully-Insulated FASTON Terminals +1

2-520337-2

Active

TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 16.14MM TIN CARTON

Deep-Dive with AI

DocumentsDatasheet Ultra-Fast Series 110, 125, 187, 205, and 250 Fully-Insulated FASTON Terminals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-520337-2

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	4.19 mm
Insulation Diameter [diameter]	0.165 "
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Ultra-Fast 187 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Color	Mounting Type	Gender	Terminal Type	Contact Material	Length - Overall	Length - Overall	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 2-520334-2	22 AWG	17.5 AWG	Tin	Fully Insulated	4.19 mm	0.165 "	Crimp	0.02 "	0.51 mm	4.75 mm	0.187 in	Red	Free Hanging (In-Line) Right Angle	Female	Angled - 90° Flag	Brass
TE Connectivity Raychem Cable Protection 3-350815-2			Tin	Fully Insulated	4.06 mm	0.16 in	Crimp	0.02 "	0.51 mm	4.75 mm	0.187 in	Blue	Free Hanging (In-Line)	Female	Standard	Brass	0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 2-520337-2	22 AWG	17.5 AWG	Tin	Fully Insulated	4.19 mm	0.165 "	Crimp	0.032 in	0.81 mm	4.75 mm	0.187 in	Red	Free Hanging (In-Line) Right Angle	Female	Angled - 90° Flag	Brass
TE Connectivity Raychem Cable Protection 3-520404-2			Tin	Fully Insulated			Crimp	0.032 in	0.81 mm	4.75 mm	0.187 in	Blue	Free Hanging (In-Line)	Female	Standard	Brass	0.855 in	21.72 mm	2.29 mm	0.16 in	0.09 in	4.06 mm
TE Connectivity Raychem Cable Protection 2-521102-2	22 AWG	17.5 AWG	Tin	Fully Insulated	3.43 mm	0.135 in	Crimp	0.02 "	0.51 mm	4.75 mm	0.187 in	Red	Free Hanging (In-Line)	Male	Standard	Brass							20.14 mm	0.793 in
TE Connectivity Raychem Cable Protection 8-520337-1	22 AWG	17.5 AWG	Tin	Fully Insulated	4.19 mm	0.165 "	Crimp	0.032 in	0.81 mm	4.75 mm	0.187 in	Red	Free Hanging (In-Line) Right Angle	Female	Angled - 90° Flag	Brass
TE Connectivity Raychem Cable Protection 3-520410-2			Tin	Fully Insulated			Crimp	0.02 "	0.51 mm	4.75 mm	0.187 in	Blue	Free Hanging (In-Line)	Female	Standard	Brass	0.855 in	21.72 mm	2.29 mm	0.16 in	0.09 in	4.06 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.37
		10	$ 0.33
Digikey	Bulk	1	$ 0.46
		10	$ 0.43
		100	$ 0.36
		1000	$ 0.27
		5000	$ 0.24
		10000	$ 0.22

Description

General part information

Ultra-Fast 187 Series

Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Flag, Brass, Tin Plating, Ultra-Fast 187

Documents

Technical documentation and resources

Datasheet

Ultra-Fast Series 110, 125, 187, 205, and 250 Fully-Insulated FASTON Terminals

Product Specifications

ENG_CD_520337_J_baseFilename.pdf

Product Drawings
