2-520334-2
ActiveTE Connectivity Raychem Cable Protection

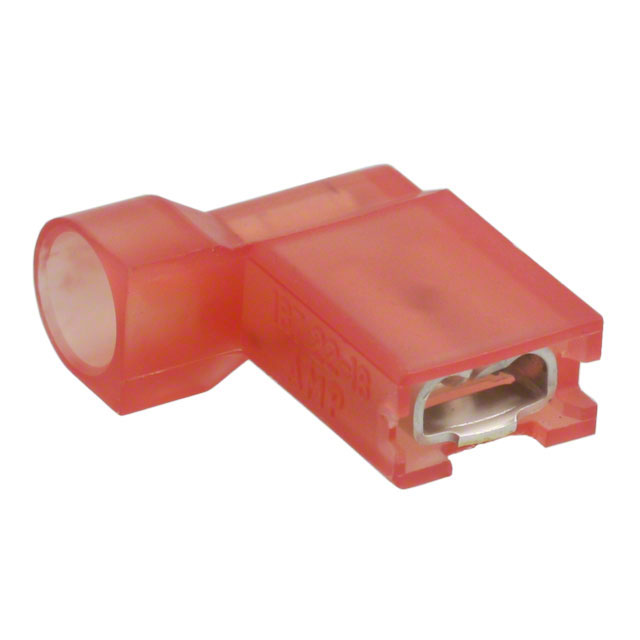

ULTRAFAST 187 ASSY FLAG REC 22-18 TPBR
Deep-Dive with AI
Search across all available documentation for this part.
2-520334-2
ActiveTE Connectivity Raychem Cable Protection
ULTRAFAST 187 ASSY FLAG REC 22-18 TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-520334-2 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 4.19 mm |
| Insulation Diameter [diameter] | 0.165 " |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 2200 | $ 0.19 | ||
Description
General part information
Ultra-Fast 187 Series
Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, Ultra-Fast 187
