2-521102-2
ActiveTE Connectivity Raychem Cable Protection

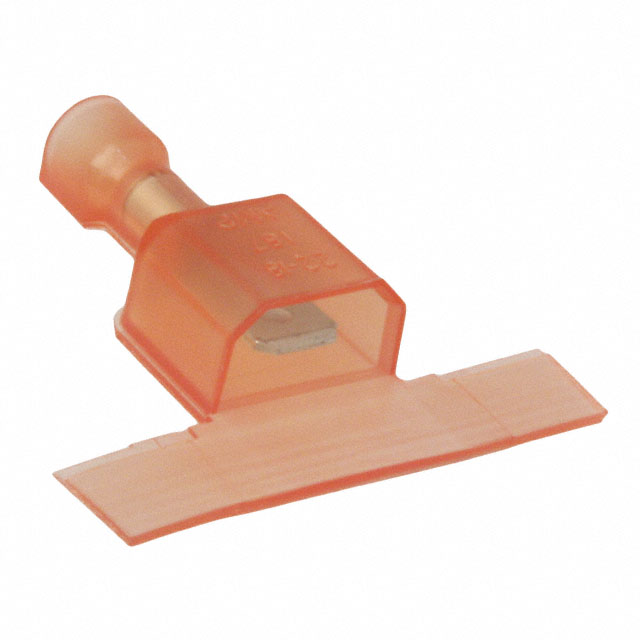

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED M 20.14MM TIN REEL/STRIP
Deep-Dive with AI
Search across all available documentation for this part.
2-521102-2
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED M 20.14MM TIN REEL/STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-521102-2 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 0.135 in |
| Insulation Diameter [diameter] | 3.43 mm |
| Length - Overall [x] | 20.14 mm |
| Length - Overall [x] | 0.793 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 0.23 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.20 | |||
| 6000 | $ 0.20 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| Tape & Reel (TR) | 1500 | $ 0.28 | ||
| 3000 | $ 0.27 | |||
| 7500 | $ 0.25 | |||
| 10500 | $ 0.23 | |||
| LCSC | Piece | 100 | $ 0.14 | |
| 1000 | $ 0.12 | |||
| 3000 | $ 0.10 | |||
| 10500 | $ 0.09 | |||
| 49500 | $ 0.08 | |||
| 100500 | $ 0.08 | |||
Description
General part information
Ultra-Fast 187 Series
Quick Disconnect Tab, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, F-Crimp, Ultra-Fast 187
