C90-3102R14S-6S

Active

Harwin Inc.

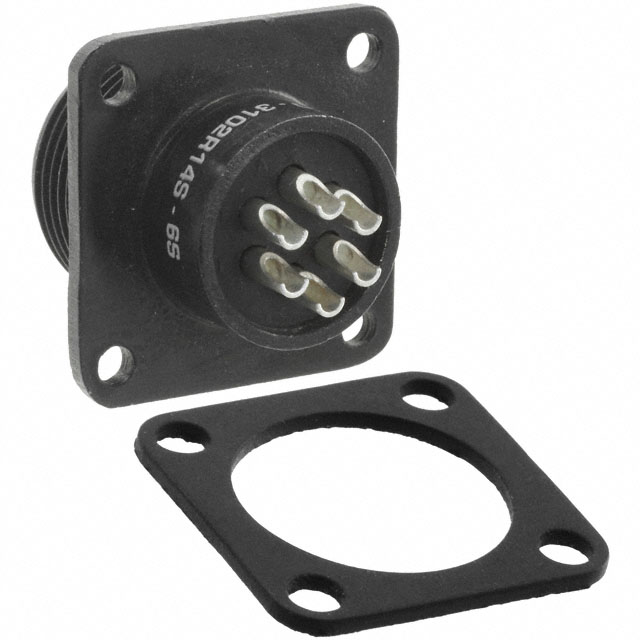

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90-25042-14S Datasheet +2

C90-3102R14S-6S

Active

Harwin Inc.

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsC90-25042-14S Datasheet +2

Specifications Pricing Series Description Documents
