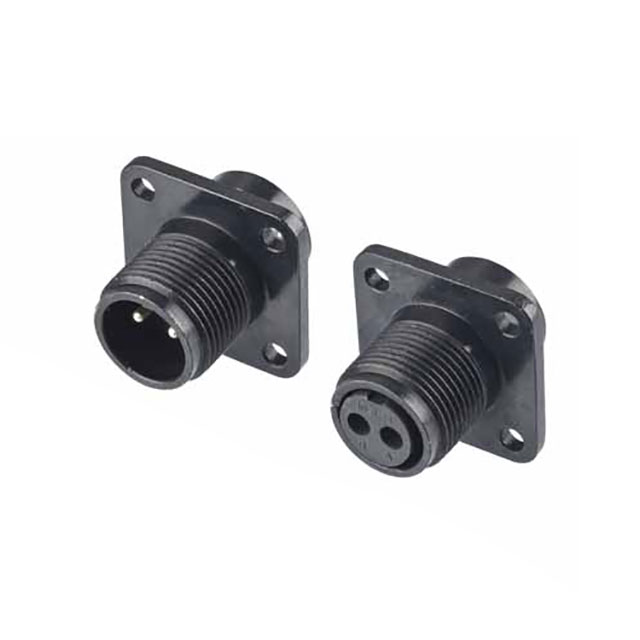

C90-3102R12S-3S

Active

Harwin Inc.

2 POS. CIRCULAR PANEL MOUNT CONN. SOCKET CONTACT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsC90-25042-14S Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C90-3102R12S-3S	C90-3102R Series

Applications	Industrial, Automotive	Industrial, Automotive
Cable Opening [custom]	17.17 mm	15.75 - 18.92 mm
Cable Opening [custom]	0.676 in	0.62 - 0.745 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Feature	Flange	Flange
Number of Positions	2	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	12S-3	14S-6, 10SL-4, 12S-3, 14S-2, 10SL-3
Shielding	Unshielded	Unshielded
Voltage Rating	700 VDC, 500 VAC	200 - 700 VDC

C90-3102R Series

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER PIN, THREADED

Part	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature	Color	Shielding	Orientation	Connector Type	Contact Material	Shell Size - Insert	Voltage Rating	Contact Finish - Mating	Primary Material	Applications	Insert Material	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Current Rating (Amps)	Ingress Protection
Harwin Inc. C90-3102R14S-6P	0.745 in	18.92 mm	Flange	Black	Unshielded	Keyed	Male Pins, Receptacle	Copper Alloy	14S-6	200 VAC, 250 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	6	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R14S-6S	0.745 in	18.92 mm	Flange	Black	Unshielded	Keyed	Receptacle, Female Sockets	Copper Alloy	14S-6	200 VAC, 250 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	6	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R10SL-4P	0.62 in	15.75 mm	Flange	Black	Unshielded	Keyed	Male Pins, Receptacle	Copper Alloy	10SL-4	500 VAC, 700 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	2	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R10SL-4S	0.62 in	15.75 mm	Flange	Black	Unshielded	Keyed	Receptacle, Female Sockets	Copper Alloy	10SL-4	500 VAC, 700 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	2	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R12S-3P	0.676 in	17.17 mm	Flange	Black	Unshielded	Keyed	Male Pins, Receptacle	Copper Alloy	12S-3	500 VAC, 700 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	2	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R14S-2S	0.745 in	18.92 mm	Flange	Black	Unshielded	Keyed	Receptacle, Female Sockets	Copper Alloy	14S-2	200 VAC, 250 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	4	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R14S-2P	0.745 in	18.92 mm	Flange	Black	Unshielded	Keyed	Male Pins, Receptacle	Copper Alloy	14S-2	200 VAC, 250 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	4	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R12S-3S	0.676 in	17.17 mm	Flange	Black	Unshielded	Keyed	Receptacle, Female Sockets	Copper Alloy	12S-3	500 VAC, 700 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	2	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
Harwin Inc. C90-3102R10SL-3S	0.62 in	15.75 mm	Flange	Black	Unshielded	Keyed	Receptacle, Female Sockets	Copper Alloy	10SL-3	500 VAC, 700 VDC	Silver	Metal	Automotive, Industrial	Synthetic Rubber	3	Aluminum Alloy	-55 °C	125 °C	Black Zinc Cobalt Alloy	13 A	IP67 - Dust Tight, Waterproof
