C90-3102R10SL-3S

Active

Harwin Inc.

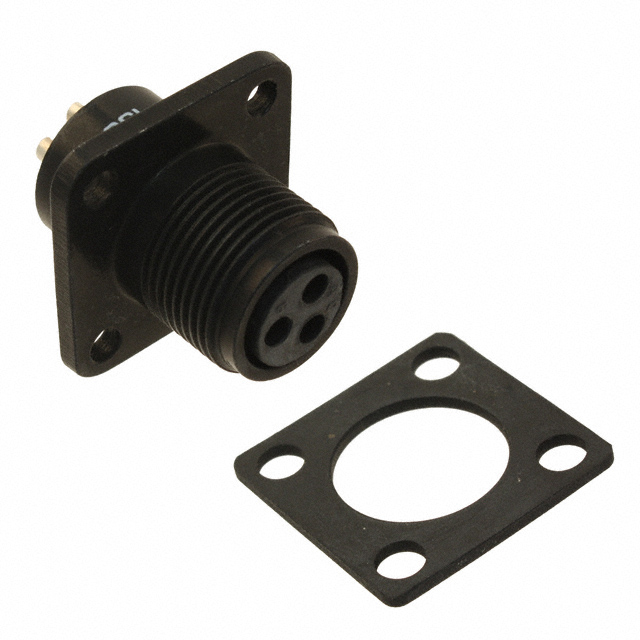

CIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN C90-25042-14S +2

C90-3102R10SL-3S

Active

Harwin Inc.

CIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsTechnical Data Sheet EN C90-25042-14S +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.96
		10	$ 10.72
		25	$ 9.70
		50	$ 9.00
		100	$ 8.37
		250	$ 7.62
		500	$ 7.12
		1000	$ 6.66
Newark	Each	1	$ 11.31
		10	$ 9.61
		25	$ 9.01
		50	$ 8.58
		100	$ 8.17
		250	$ 7.66
		500	$ 7.29

Description

General part information

C90-3102R Series

3 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

C90-25042-14S

C90 Circular Catalog

Datasheet

Specification	C90-3102R10SL-3S	C90-3102R Series

Applications	Industrial, Automotive	Industrial, Automotive
Cable Opening [custom]	15.75 mm	15.75 - 18.92 mm
Cable Opening [custom]	0.62 in	0.62 - 0.745 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Feature	Flange	Flange
Number of Positions	3	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	10SL-3	14S-6, 10SL-4, 12S-3, 14S-2, 10SL-3
Shielding	Unshielded	Unshielded
Voltage Rating	700 VDC, 500 VAC	200 - 700 VDC

Part
