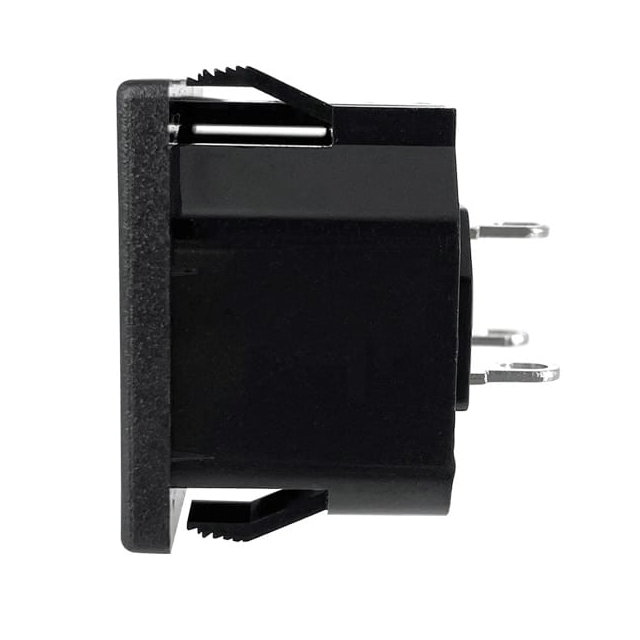

716W-X2/01
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PANEL
Deep-Dive with AI
Search across all available documentation for this part.
716W-X2/01
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 716W-X2/01 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CSA, TUV, UL |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 32.6 mm |
| Panel Cutout Dimensions [y] | 25.3 mm |
| Panel Thickness | 0.79 mm |
| Panel Thickness | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.031 " |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.36 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.10 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.03 | |||
| 300 | $ 0.94 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.75 | |||
| 2500 | $ 0.68 | |||
Description
General part information
716W-X2 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
