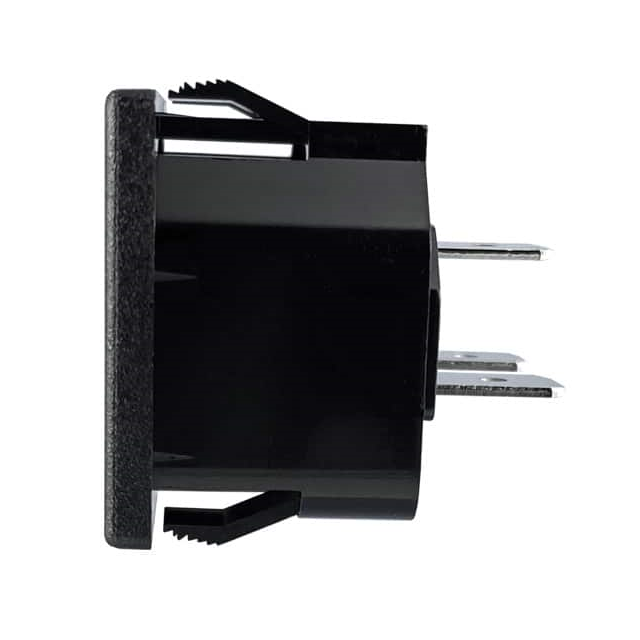

716W-X2/03
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
Search across all available documentation for this part.
716W-X2/03
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 716W-X2/03 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CCC, NEMKO, CSA, TUV, UL |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 32.6 mm |
| Panel Cutout Dimensions [y] | 25.3 mm |
| Panel Thickness | 0.79 mm |
| Panel Thickness | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.031 " |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.37 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.07 | |||
| 300 | $ 0.97 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.76 | |||
| 2500 | $ 0.71 | |||
Description
General part information
716W-X2 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
