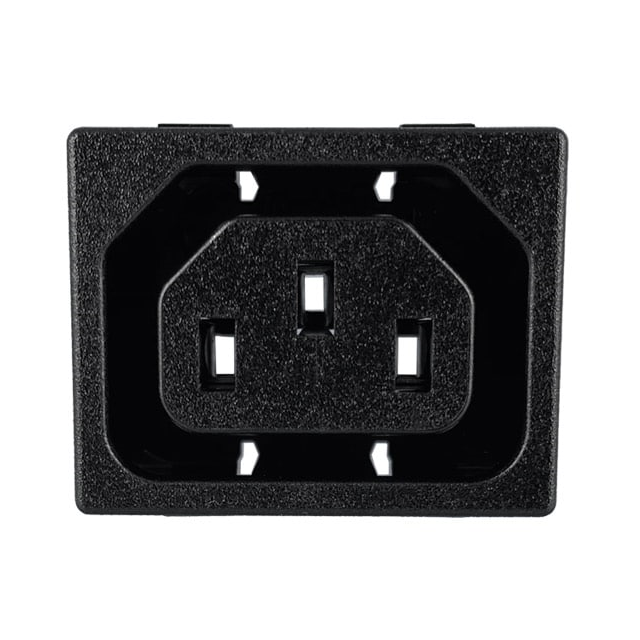

Specification	716W-X2/02

Accomodates a Fuse	No
Approval Agency	CSA, TUV, UL
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered, Commercial
Mounting Type	Panel Mount, Snap-In
Number of Positions	3
Panel Cutout Length	32.6 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	25.3 mm
Panel Thickness (Max)	0.059 in
Panel Thickness (Min)	0.031 in
Termination	Quick Connect
Termination Probe Tip OD	0.189 in
Voltage Rating - Appliance Inlet	250 VAC

716W-X2 Series

Part	Connector Style	Accomodates a Fuse	Filter Type	Termination Probe Tip OD	Termination	Mounting Type	Approval Agency	Panel Thickness (Max)	Panel Thickness (Min)	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Type	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Number of Positions
Qualtek 716W-X2/02	IEC 320-2-2/F	No	Commercial Unfiltered	0.189 in	Quick Connect	Panel Mount Snap-In	CSA TUV UL	0.059 in	0.031 in	250 VAC	10 A	Female Sockets Receptacle	Rectangular	32.6 mm	25.3 mm	3
Qualtek 716W-X2/03	IEC 320-2-2/F	No	Commercial Unfiltered	0.25 in	Quick Connect	Panel Mount Snap-In	CCC CSA NEMKO TUV UL	0.059 in	0.031 in	250 VAC	10 A	Female Sockets Receptacle	Rectangular	32.6 mm	25.3 mm	3
Qualtek 716W-X2/01	IEC 320-2-2/F	No	Commercial Unfiltered		Solder Eyelet	Panel Mount Snap-In	CSA TUV UL	0.059 in	0.031 in	250 VAC	10 A	Female Sockets Receptacle	Rectangular	32.6 mm	25.3 mm	3
