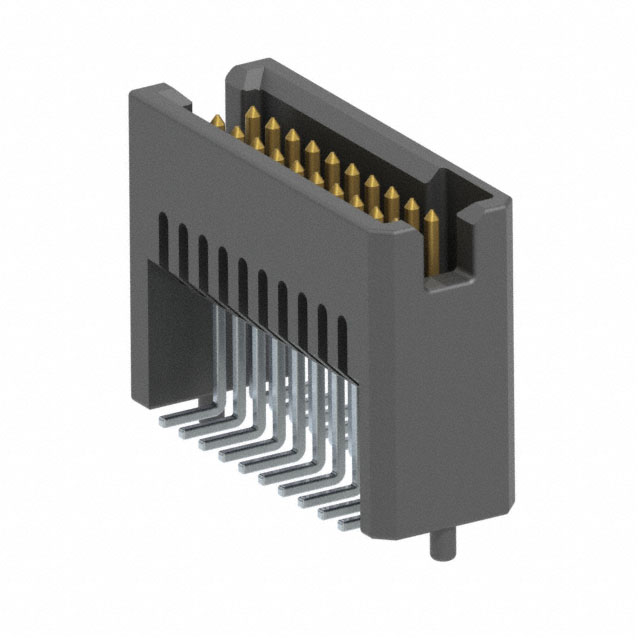

TFM-110-32-S-D-A-K

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER EYE™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TFM-110-32-S-D-A-K

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER EYE™ TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-110-32-S-D-A-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-110 Series

Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch

...

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Shape	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Voltage Rating	Style	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Termination	Number of Positions	Features	Mounting Type	Shrouding	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TFM-110-22-F-D-A	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	3 µin	0.076 µm	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide	Surface Mount	Shrouded - 4 Wall	9.14 mm	0.36 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-S-D-A-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-32-S-D-P	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-32-S-D-A-K	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-130-02-S-D-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.131 in	3.33 mm	Solder	60	Pick and Place	Surface Mount	Shrouded - 4 Wall	5.6 mm	0.22 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-S-D-P	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-SM-D-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-01-STL-D	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.131 in	3.33 mm	Solder	20		Through Hole	Shrouded - 4 Wall	5.6 mm	0.22 in	0.05 in	1.27 mm	Black	Tin	Gold	0.078 in	1.98 mm
Samtec Inc. TFM-110-32-L-D-LC	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	15 µin	0.38 µm	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20		Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-115-32-S-D-K	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	30	Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
