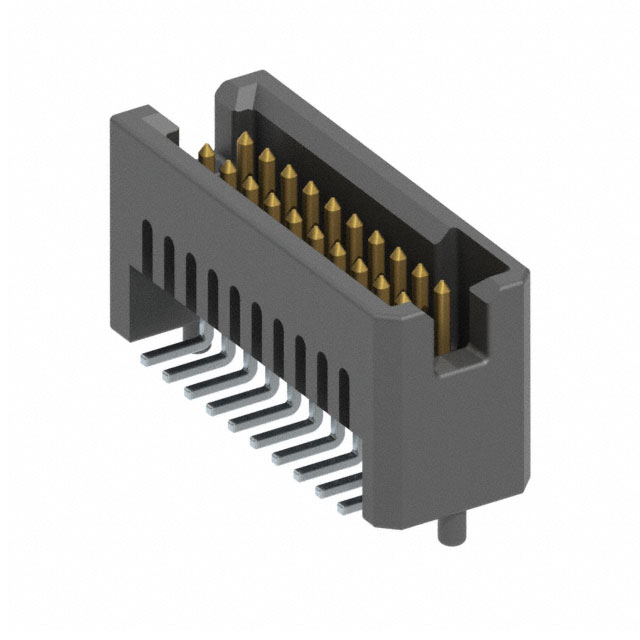

TFM-110-12-S-D-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFM Series Other Related Documents 03 Datasheet +2

TFM-110-12-S-D-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsSFM Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-110-12-S-D-A-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A, 2.9 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-110 Series

Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch

...

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Shape	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Voltage Rating	Style	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Termination	Number of Positions	Features	Mounting Type	Shrouding	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TFM-110-22-F-D-A	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	3 µin	0.076 µm	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide	Surface Mount	Shrouded - 4 Wall	9.14 mm	0.36 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-S-D-A-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-32-S-D-P	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-32-S-D-A-K	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Board Guide Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-130-02-S-D-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.131 in	3.33 mm	Solder	60	Pick and Place	Surface Mount	Shrouded - 4 Wall	5.6 mm	0.22 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-S-D-P	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A 3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-12-SM-D-P-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	3.2 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20	Pick and Place	Surface Mount	Shrouded - 4 Wall	7.37 mm	0.29 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-110-01-STL-D	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.131 in	3.33 mm	Solder	20		Through Hole	Shrouded - 4 Wall	5.6 mm	0.22 in	0.05 in	1.27 mm	Black	Tin	Gold	0.078 in	1.98 mm
Samtec Inc. TFM-110-32-L-D-LC	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	15 µin	0.38 µm	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	20		Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold
Samtec Inc. TFM-115-32-S-D-K	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	2	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	Square	All	Male Pin	2.9 A	275 VAC	Board to Board Cable	Header	UL94 V-0	0.139 in	3.53 mm	Solder	30	Pick and Place	Surface Mount	Shrouded - 4 Wall	11.05 mm	0.435 in	0.05 in	1.27 mm	Black	Tin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.19
		25	$ 3.84
		50	$ 3.52
		100	$ 3.25
	Digi-Reel®	1	$ 4.19
		25	$ 3.84
		50	$ 3.52
		100	$ 3.25
	Tape & Reel (TR)	350	$ 3.25
		700	$ 2.99
		1050	$ 2.77
