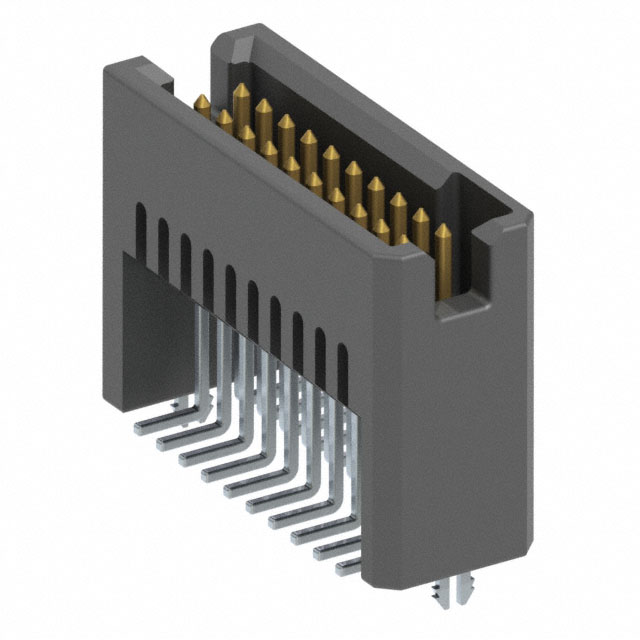

TFM-110-32-L-D-LC - TFM-110-32-x-D-LC

TFM-110-32-L-D-LC

Active
Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTFM DatasheetSFM Series Other Related Documents 03+2
TFM-110-32-L-D-LC - TFM-110-32-x-D-LC

TFM-110-32-L-D-LC

Active
Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsTFM DatasheetSFM Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationTFM-110-32-L-D-LC
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating15 µin
Contact Finish Thickness - Mating0.38 µm
Contact Length - Mating0.139 in
Contact Length - Mating3.53 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2.9 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.435 in
Insulation Height11.05 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions20
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating275 VAC

TFM-110 Series

Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch

...
