BU-65-2

Active

Mueller Electric Co

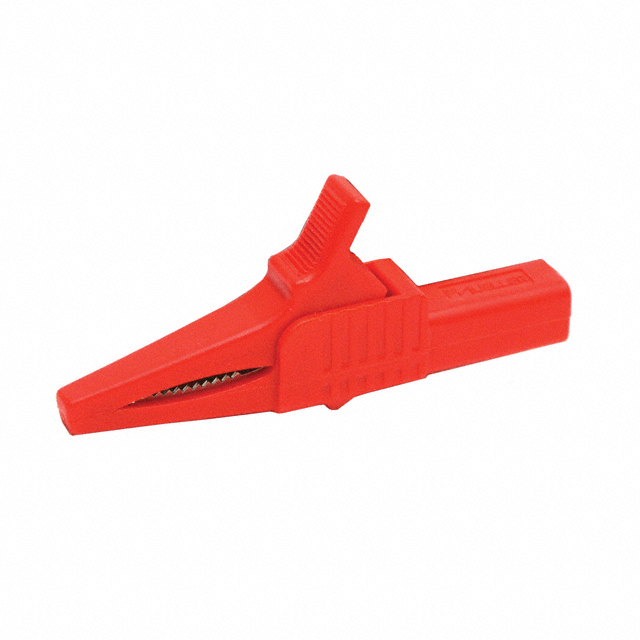

ALLIGATOR CLIP, SAFETY, LARGE, 19 MM, 30 A, RED

Search across all available documentation for this part.

Active

Mueller Electric Co

ALLIGATOR CLIP, SAFETY, LARGE, 19 MM, 30 A, RED

Technical Specifications

Parameters and characteristics for this part

Specification	BU-65-2

Color	Red
Current Rating (Amps)	30 A
Insulation	Insulated
Jaw Opening	19.05 mm
Jaw Opening	0.75 in
Length	82.04 mm
Length [x]	3.23 "
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Plating	Nickel
Quantity	1 Box
Ratings	IEC 1010
Termination	Banana, Female Socket (Jack)
Voltage - Rated	1 kV
Voltage - Rated	1000 V

Part	Insulation	Quantity	Color	Length	Length [x]	Current Rating (Amps)	Plating	Material - Insulation	Ratings	Voltage - Rated	Voltage - Rated	Jaw Opening	Jaw Opening	Termination
Mueller Electric Co BU-65-9	Insulated	1 Box	White	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)
Mueller Electric Co BU-65-6	Insulated	1 Box	Blue	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)
Mueller Electric Co BU-65-2	Insulated	1 Box	Red	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The BU-65-2 is a 1000V red large safety Alligator Clip. The clip with nickel-plated steel, glass-filled nylon housing.
