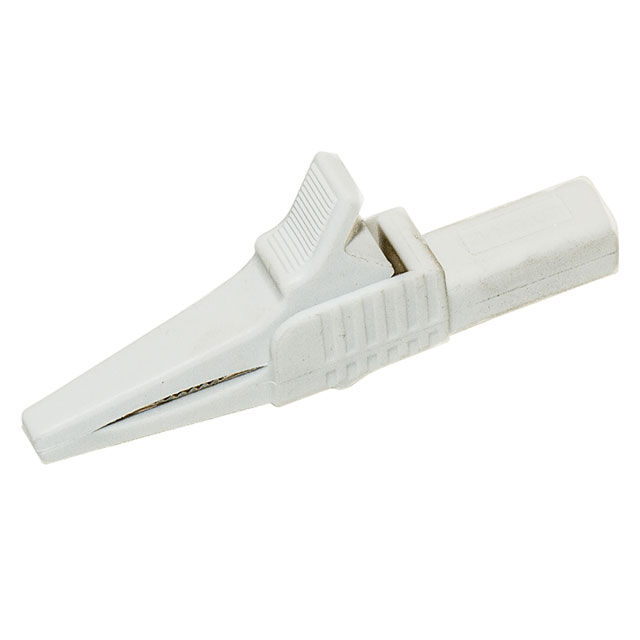

BU-65-9
ActiveMueller Electric Co
ALLIGATOR CLIP, 4 MM PLUG, 19 MM, 30 A, WHITE
Deep-Dive with AI
Search across all available documentation for this part.
BU-65-9
ActiveMueller Electric Co
ALLIGATOR CLIP, 4 MM PLUG, 19 MM, 30 A, WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-65-9 |
|---|---|
| Color | White |
| Current Rating (Amps) | 30 A |
| Insulation | Insulated |
| Jaw Opening | 19.05 mm |
| Jaw Opening | 0.75 in |
| Length | 82.04 mm |
| Length [x] | 3.23 " |
| Material - Insulation | Polyamide (PA), Glass Filled, Nylon |
| Plating | Nickel |
| Quantity | 1 Box |
| Ratings | IEC 1010 |
| Termination | Banana, Female Socket (Jack) |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.11 | |
| 10 | $ 5.80 | |||
| 100 | $ 5.53 | |||
| 500 | $ 5.35 | |||
| 1000 | $ 5.25 | |||
Description
General part information
BU-65 Series
The BU-65-9 is a fully insulated safety Alligator Clip compatible with shrouded, un-shrouded or retractable 4mm banana plug connection. It has nickel-plated steel body and nylon housing. This BU‐65 series is one of only a few UL listed alligator clips.
