BU-65-6

Active

Mueller Electric Co

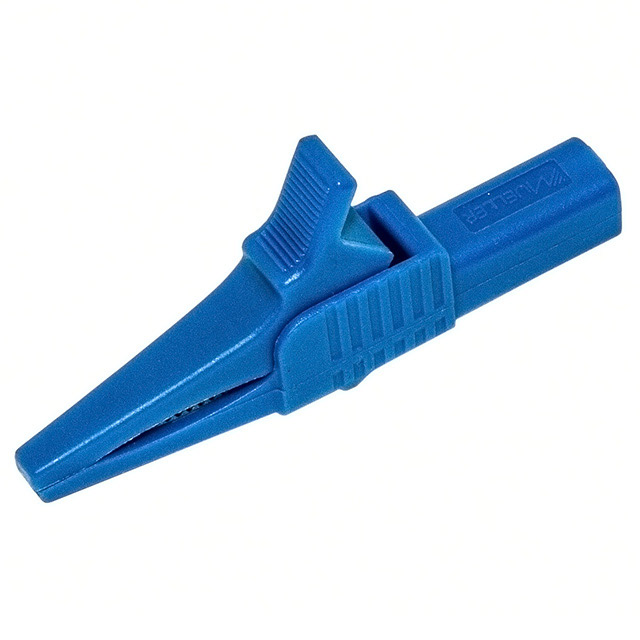

ALLIGATOR CLIP, 4 MM PLUG, 19 MM, 30 A, BLUE

Search across all available documentation for this part.

Active

Mueller Electric Co

ALLIGATOR CLIP, 4 MM PLUG, 19 MM, 30 A, BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	BU-65-6

Color	Blue
Current Rating (Amps)	30 A
Insulation	Insulated
Jaw Opening	19.05 mm
Jaw Opening	0.75 in
Length	82.04 mm
Length [x]	3.23 "
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Plating	Nickel
Quantity	1 Box
Ratings	IEC 1010
Termination	Banana, Female Socket (Jack)
Voltage - Rated	1 kV
Voltage - Rated	1000 V

Part	Insulation	Quantity	Color	Length	Length [x]	Current Rating (Amps)	Plating	Material - Insulation	Ratings	Voltage - Rated	Voltage - Rated	Jaw Opening	Jaw Opening	Termination
Mueller Electric Co BU-65-9	Insulated	1 Box	White	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)
Mueller Electric Co BU-65-6	Insulated	1 Box	Blue	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)
Mueller Electric Co BU-65-2	Insulated	1 Box	Red	82.04 mm	3.23 "	30 A	Nickel	Glass Filled Nylon Polyamide (PA)	IEC 1010	1 kV	1000 V	19.05 mm	0.75 in	Banana Female Socket (Jack)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The BU-65-6 is a 1000V blue large safety Alligator Clip. The clip with nickel-plated steel, glass-filled nylon housing.
