341-072-500-204

Active

EDAC Inc.

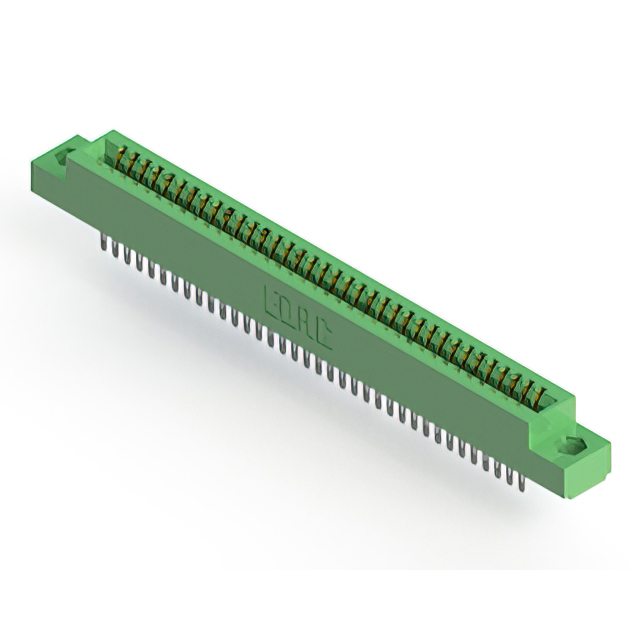

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Card Edge Brochure +2

341-072-500-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Card Edge Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-072-500-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

341-072 Series

Part	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Flange Feature	Termination Rows	Number of Positions/Bay/Row [custom]	Read Out	Features	Contact Material	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Color	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-072-556-208	Solder	72	-40 °C	105 ░C	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-555-204	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount	3.96 mm	0.156 in
EDAC Inc. 341-072-520-201	Solder	72	-40 °C	105 ░C	Semi Bellows		2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-556-207	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-521-204	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in
EDAC Inc. 341-072-520-204	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in
EDAC Inc. 341-072-556-202	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount	3.25 mm	0.128 "
EDAC Inc. 341-072-520-203	Solder	72	-40 °C	105 ░C	Semi Bellows	Floating Bobbin Flush Mount	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	2.95 mm	0.116 in
EDAC Inc. 341-072-555-201	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows		2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount
EDAC Inc. 341-072-500-204	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in
