341-072-521-204
ActiveEDAC Inc.

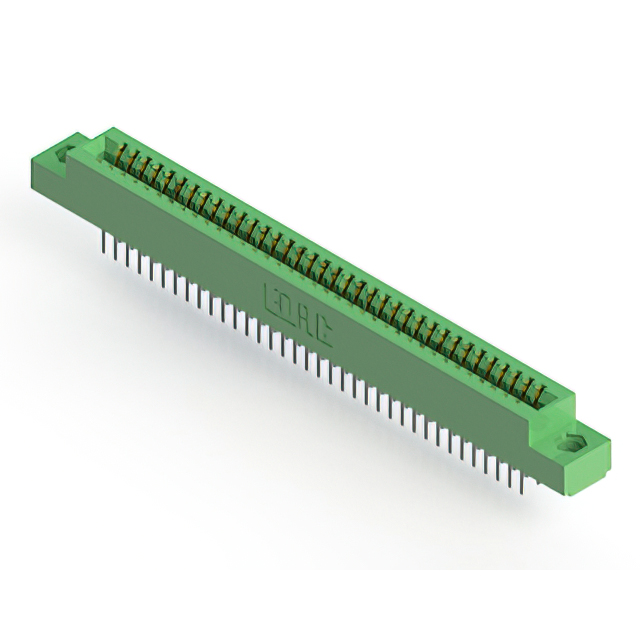

CONN EDGE DUAL FMALE 72POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
341-072-521-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-072-521-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-072 Series
| Part | Termination | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Termination Rows | Number of Positions/Bay/Row [custom] | Read Out | Features | Contact Material | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Finish | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 36 | Dual | Card Extender | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | ||
EDAC Inc. | Solder Eyelet(s) | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | 36 | Dual | Card Extender | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | 3.96 mm | 0.156 in |
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | 2 | 36 | Dual | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | ||||
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 2 | 36 | Dual | Card Extender | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | ||
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | 36 | Dual | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | 36 | Dual | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | 36 | Dual | Card Extender | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | 3.25 mm | 0.128 " |
EDAC Inc. | Solder | 72 | -40 °C | 105 ░C | Semi Bellows | Floating Bobbin Flush Mount | 2 | 36 | Dual | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | 2.95 mm | 0.116 in | |
EDAC Inc. | Solder Eyelet(s) | 72 | -40 °C | 105 ░C | Semi Bellows | 2 | 36 | Dual | Card Extender | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | |||
EDAC Inc. | Solder Eyelet(s) | 72 | -40 °C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | 36 | Dual | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Green | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Through Hole | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 16.74 | |
Description
General part information
341-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
