341-072-520-203

Active

EDAC Inc.

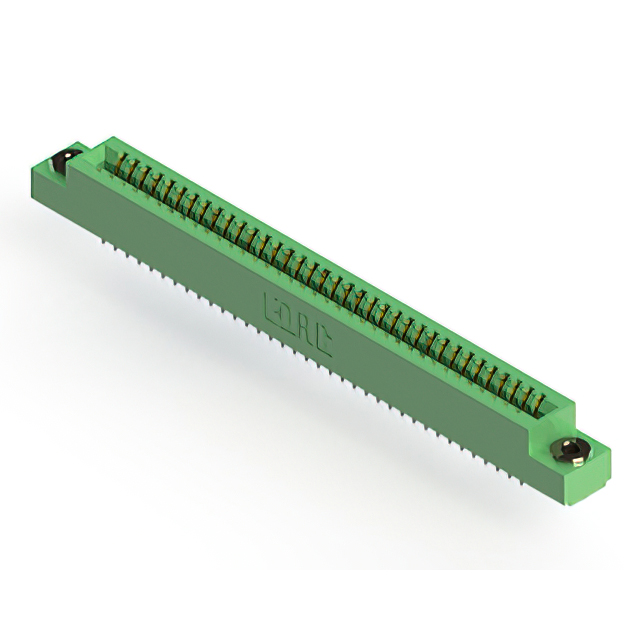

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-072-520-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-072-520-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-072 Series

Part	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Flange Feature	Termination Rows	Number of Positions/Bay/Row [custom]	Read Out	Features	Contact Material	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Color	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-072-556-208	Solder	72	-40 °C	105 ░C	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-555-204	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount	3.96 mm	0.156 in
EDAC Inc. 341-072-520-201	Solder	72	-40 °C	105 ░C	Semi Bellows		2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-556-207	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole
EDAC Inc. 341-072-521-204	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in
EDAC Inc. 341-072-520-204	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in
EDAC Inc. 341-072-556-202	Solder	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount	3.25 mm	0.128 "
EDAC Inc. 341-072-520-203	Solder	72	-40 °C	105 ░C	Semi Bellows	Floating Bobbin Flush Mount	2	36	Dual		Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	2.95 mm	0.116 in
EDAC Inc. 341-072-555-201	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows		2	36	Dual	Card Extender	Copper Alloy	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Board Edge Straddle Mount
EDAC Inc. 341-072-500-204	Solder Eyelet(s)	72	-40 °C	105 ░C	Semi Bellows	Flush Mount Top Opening Unthreaded	2	36	Dual		Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Green	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	2	Through Hole	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.56
LCSC	Piece	1	$ 9.55
		200	$ 3.69
		500	$ 3.57
		1000	$ 3.50
Newark	Each	1	$ 19.37
		100	$ 12.04
		250	$ 10.65
		500	$ 8.58
		1000	$ 7.18

Description

General part information

341-072 Series

72 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
