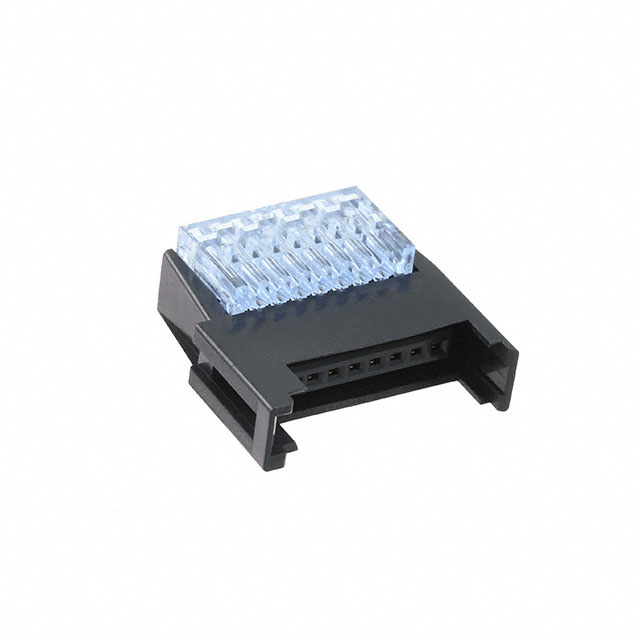

2-1746741-8

Active

TE Connectivity Raychem Cable Protection

RITS CONN. SOCKET ASSY 8P BLUE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RITS CONN. SOCKET ASSY 8P BLUE

Technical Specifications

Parameters and characteristics for this part

Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Color	Cable Termination	Number of Positions	Contact Type
TE Connectivity Raychem Cable Protection 2-1746741-8	16 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	8	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-3	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC		Female Socket
TE Connectivity Raychem Cable Protection 1746741-8	17 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	8	Female Socket
TE Connectivity Raychem Cable Protection 2-1746741-6	16 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	6	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-4	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	Spring Clamp	4	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-6	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	6	Female Socket
TE Connectivity Raychem Cable Protection 4-1746741-3			8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC		Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW
