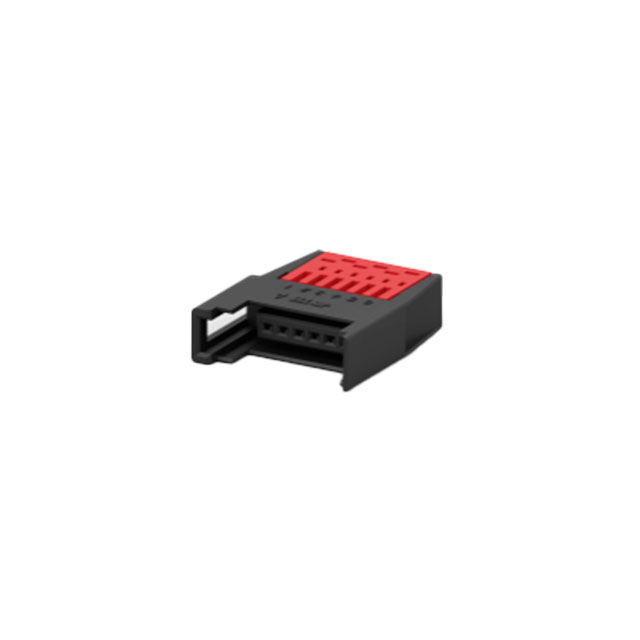

1-1746741-6

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 6P IDC 20-26AWG GOLD

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 6P IDC 20-26AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Color	Cable Termination	Number of Positions	Contact Type
TE Connectivity Raychem Cable Protection 2-1746741-8	16 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	8	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-3	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC		Female Socket
TE Connectivity Raychem Cable Protection 1746741-8	17 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	8	Female Socket
TE Connectivity Raychem Cable Protection 2-1746741-6	16 AWG	18 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	6	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-4	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	Spring Clamp	4	Female Socket
TE Connectivity Raychem Cable Protection 1-1746741-6	17.5 AWG	19 AWG	8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC	6	Female Socket
TE Connectivity Raychem Cable Protection 4-1746741-3			8 çin	0.203 çm	Socket	Discrete	1	0.079 in	2 mm	Gold	Free Hanging (In-Line)	Black	IDC		Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 3.44

General part information

Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW
