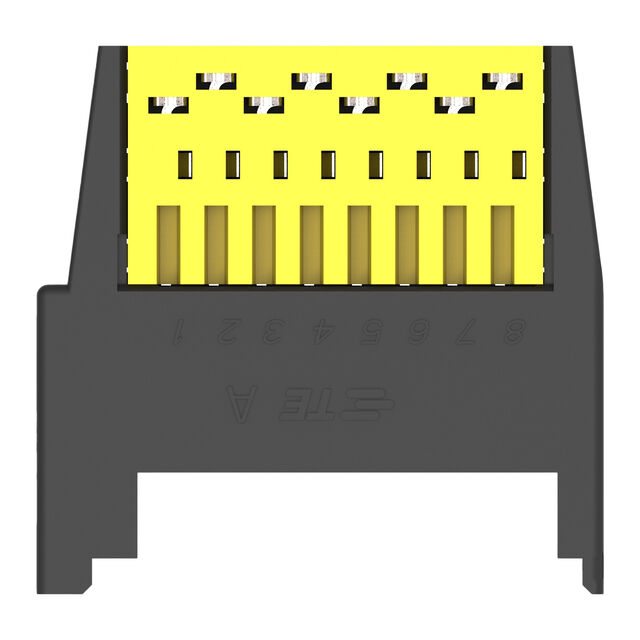

1746741-8
ActiveTE Connectivity Raychem Cable Protection
RITS CONN.SOCKET ASSY 8P YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1746741-8
ActiveTE Connectivity Raychem Cable Protection
RITS CONN.SOCKET ASSY 8P YELLOW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1746741-8 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 17 AWG |
| Wire Type | Discrete |
RITS Socket Connectors Series
Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Wire Type | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Color | Cable Termination | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | 8 | Female Socket |
TE Connectivity Raychem Cable Protection | 17.5 AWG | 19 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | Female Socket | |
TE Connectivity Raychem Cable Protection | 17 AWG | 18 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | 8 | Female Socket |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | 6 | Female Socket |
TE Connectivity Raychem Cable Protection | 17.5 AWG | 19 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | Spring Clamp | 4 | Female Socket |
TE Connectivity Raychem Cable Protection | 17.5 AWG | 19 AWG | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | 6 | Female Socket |
TE Connectivity Raychem Cable Protection | 8 çin | 0.203 çm | Socket | Discrete | 1 | 0.079 in | 2 mm | Gold | Free Hanging (In-Line) | Black | IDC | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.05 | |
| 20 | $ 6.37 | |||
| 40 | $ 5.87 | |||
| 100 | $ 5.58 | |||
| 260 | $ 4.99 | |||
| 500 | $ 4.70 | |||
| 1000 | $ 4.11 | |||
| 2500 | $ 3.91 | |||
Description
General part information
RITS Socket Connectors Series
Power to the Board RITS CONN.SOCKET ASSY 3P YELLOW
