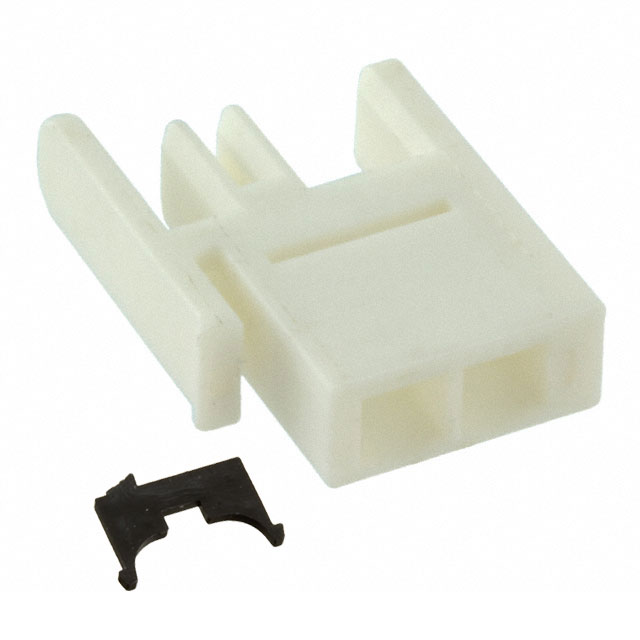

10120045-K02LF

Active

Amphenol ICC (FCI)

CONN SSL RCPT & BLADE 2POS 3MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN SSL RCPT & BLADE 2POS 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	10120045-K02LF

Connector Type	Blade and Receptacle Housing
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Housing Color	Natural
Housing Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3 mm
Pitch [x]	0.118 in
Style	Board to Cable/Wire
Termination	Crimp
Voltage Rating	125 VDC
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	22 AWG

Part	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Material	Style	Mounting Type	Housing Color	Pitch [x]	Pitch [x]	Housing Material	Fastening Type	Mating Cycles	Features
Amphenol ICC (FCI) 10120045-R01LF	Contact Socket	30 AWG	22 AWG	Crimp	5 A	Gold GXT™	125 °C	-40 °C	1	125 VDC	Copper Alloy	Board to Cable/Wire	Free Hanging (In-Line)
Amphenol ICC (FCI) 10120045-K02LF	Blade and Receptacle Housing	30 AWG	22 AWG	Crimp	5 A		125 °C	-40 °C	2	125 VDC		Board to Cable/Wire	Free Hanging (In-Line)	Natural	3 mm	0.118 in	Thermoplastic	Latch Lock
Amphenol ICC (FCI) 10120045-400LF	Blade and Receptacle Hermaphroditic			Solder	5 A	Gold GXT™	125 °C	-40 °C	4	125 VDC	Copper Alloy		Board Edge Right Angle Surface Mount	Natural	3 mm	0.118 in	Liquid Crystal Polymer (LCP)		20	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.41

General part information

SSL Connector 2 Position Blade and Receptacle Housing Board to Cable/Wire 0.118" (3.00mm) Crimp
