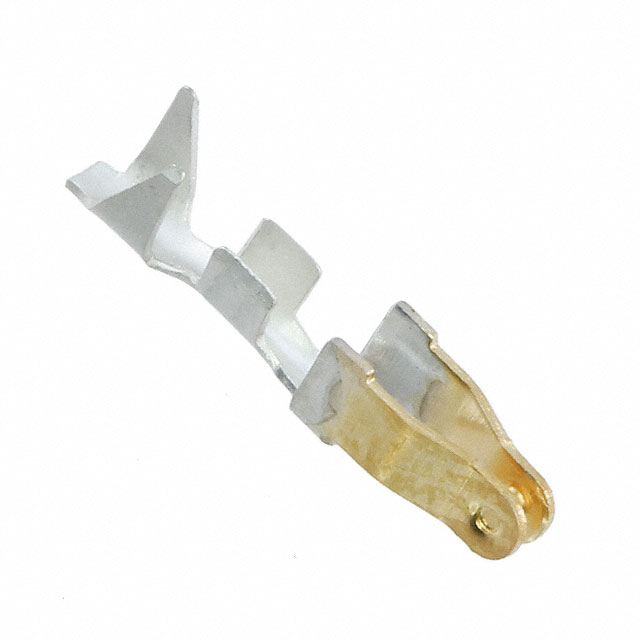

10120045-R01LF

Active

Amphenol ICC (FCI)

CONN SSL SKT CONT 22-30AWG CRIMP

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN SSL SKT CONT 22-30AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Material	Style	Mounting Type	Housing Color	Pitch [x]	Pitch [x]	Housing Material	Fastening Type	Mating Cycles	Features
Amphenol ICC (FCI) 10120045-R01LF	Contact Socket	30 AWG	22 AWG	Crimp	5 A	Gold GXT™	125 °C	-40 °C	1	125 VDC	Copper Alloy	Board to Cable/Wire	Free Hanging (In-Line)
Amphenol ICC (FCI) 10120045-K02LF	Blade and Receptacle Housing	30 AWG	22 AWG	Crimp	5 A		125 °C	-40 °C	2	125 VDC		Board to Cable/Wire	Free Hanging (In-Line)	Natural	3 mm	0.118 in	Thermoplastic	Latch Lock
Amphenol ICC (FCI) 10120045-400LF	Blade and Receptacle Hermaphroditic			Solder	5 A	Gold GXT™	125 °C	-40 °C	4	125 VDC	Copper Alloy		Board Edge Right Angle Surface Mount	Natural	3 mm	0.118 in	Liquid Crystal Polymer (LCP)		20	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.12

General part information

22-30 AWG SSL Contact, Socket Crimp Free Hanging (In-Line)
