10120045-400LF

Active

Amphenol ICC (FCI)

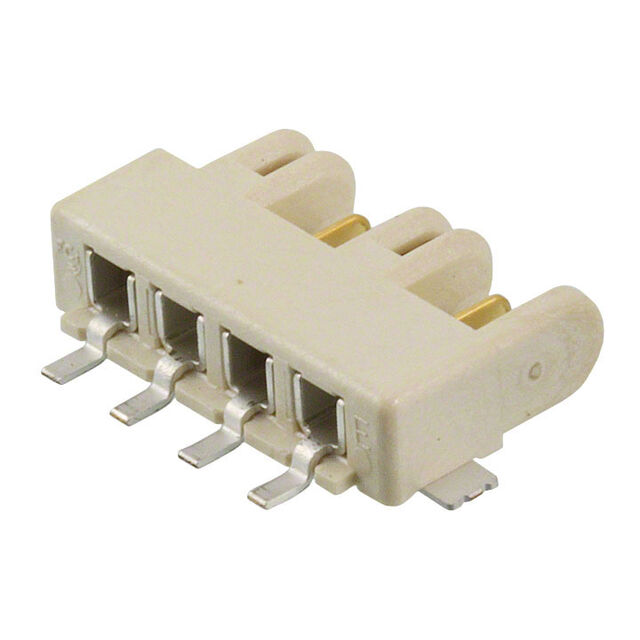

CONN SSL RCPT & BLADE 4POS 3MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN SSL RCPT & BLADE 4POS 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	10120045-400LF

Connector Type	Blade and Receptacle, Hermaphroditic
Contact Finish	GXT™, Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Solder Retention
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	20
Mounting Type	Board Edge, Right Angle, Surface Mount
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3 mm
Pitch [x]	0.118 in
Termination	Solder
Voltage Rating	125 VDC

Part	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Material	Style	Mounting Type	Housing Color	Pitch [x]	Pitch [x]	Housing Material	Fastening Type	Mating Cycles	Features
Amphenol ICC (FCI) 10120045-R01LF	Contact Socket	30 AWG	22 AWG	Crimp	5 A	Gold GXT™	125 °C	-40 °C	1	125 VDC	Copper Alloy	Board to Cable/Wire	Free Hanging (In-Line)
Amphenol ICC (FCI) 10120045-K02LF	Blade and Receptacle Housing	30 AWG	22 AWG	Crimp	5 A		125 °C	-40 °C	2	125 VDC		Board to Cable/Wire	Free Hanging (In-Line)	Natural	3 mm	0.118 in	Thermoplastic	Latch Lock
Amphenol ICC (FCI) 10120045-400LF	Blade and Receptacle Hermaphroditic			Solder	5 A	Gold GXT™	125 °C	-40 °C	4	125 VDC	Copper Alloy		Board Edge Right Angle Surface Mount	Natural	3 mm	0.118 in	Liquid Crystal Polymer (LCP)		20	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSL Connector 4 Position Blade and Receptacle, Hermaphroditic Board to Board 0.118" (3.00mm) Solder
