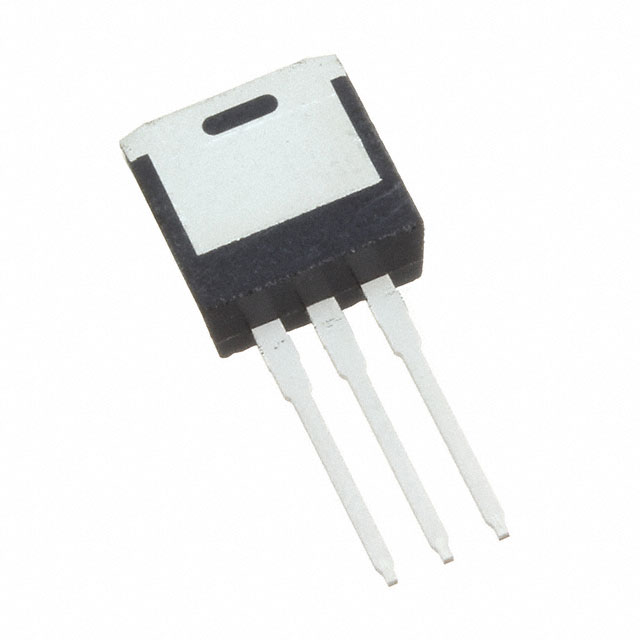

IPI90R1K2C3XKSA1

Obsolete

Infineon Technologies

MOSFET N-CH 900V 5.1A TO262-3

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET N-CH 900V 5.1A TO262-3

Technical Specifications

Parameters and characteristics for this part

Specification	IPI90R1K2C3XKSA1

Current - Continuous Drain (Id) @ 25°C	5.1 A
Drain to Source Voltage (Vdss)	900 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	28 nC
Input Capacitance (Ciss) (Max) @ Vds	710 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Power Dissipation (Max)	83 W
Rds On (Max) @ Id, Vgs	1.2 Ohm
Supplier Device Package	PG-TO262-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.5 V

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	FET Type	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Technology	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Package / Case	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds
Infineon Technologies IPI90R1K0C3XKSA1	PG-TO262-3	-55 °C	150 °C	3.5 V	900 V	20 V	5.7 A	N-Channel	1 Ohm	34 nC	MOSFET (Metal Oxide)	10 V	850 pF	Through Hole	I2PAK TO-262-3 Long Leads TO-262AA
Infineon Technologies IPI90R800C3XKSA1	PG-TO262-3	-55 °C	150 °C	3.5 V	900 V	20 V	6.9 A	N-Channel		42 nC	MOSFET (Metal Oxide)	10 V		Through Hole	I2PAK TO-262-3 Long Leads TO-262AA	104 W	800 mOhm
Infineon Technologies IPI90R340C3XKSA1	PG-TO262-3	-55 °C	150 °C	3.5 V	900 V	20 V	15 A	N-Channel		94 nC	MOSFET (Metal Oxide)	10 V	2400 pF	Through Hole	I2PAK TO-262-3 Long Leads TO-262AA	208 W	340 mOhm
Infineon Technologies IPI90R1K2C3XKSA1	PG-TO262-3	-55 °C	150 °C	3.5 V	900 V	20 V	5.1 A	N-Channel	1.2 Ohm		MOSFET (Metal Oxide)	10 V		Through Hole	I2PAK TO-262-3 Long Leads TO-262AA	83 W		28 nC	710 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 900 V 5.1A (Tc) 83W (Tc) Through Hole PG-TO262-3
