R125153901

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

R125153901

Active

Radiall USA, Inc.

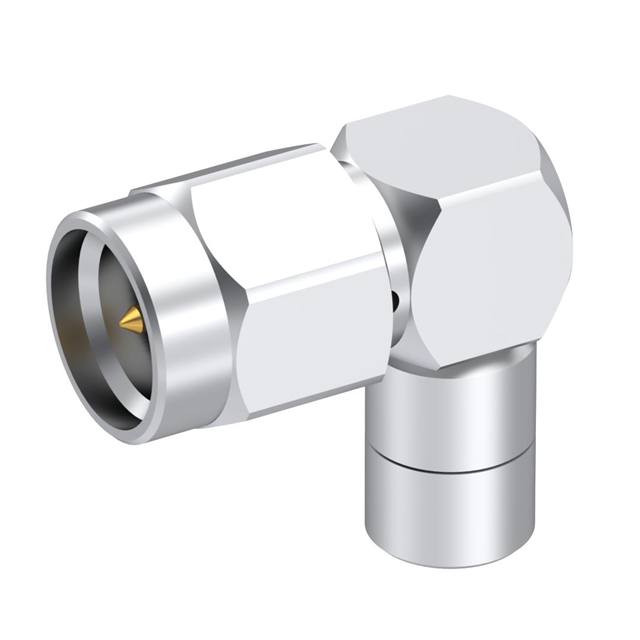

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125153901

Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

R12515 Series

Part	Impedance	Mounting Type	Body Finish	Dielectric Material	Shield Termination	Center Contact Material	Body Material	Mating Cycles	Cable Group	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Number of Ports	Housing Color	Connector Type
Radiall USA, Inc. R125153002	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)	1 Connector 1 End Cap	-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154002	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154901	50 Ohms	Free Hanging (In-Line) Right Angle		Polytetrafluoroethylene (PTFE)	Crimp	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	500 V	18 GHz	Gold	Crimp	1	Silver	Male Pin Plug
Radiall USA, Inc. R125154000	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154000W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel				-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153002W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153901	50 Ohms	Free Hanging (In-Line) Right Angle		Polytetrafluoroethylene (PTFE)	Crimp	Brass		500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	335 V	18 GHz	Gold	Crimp	1	Silver	Male Pin Plug
Radiall USA, Inc. R125154002W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel				-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153000W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	250 VDC	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 59.09

Description

General part information

R12515 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
