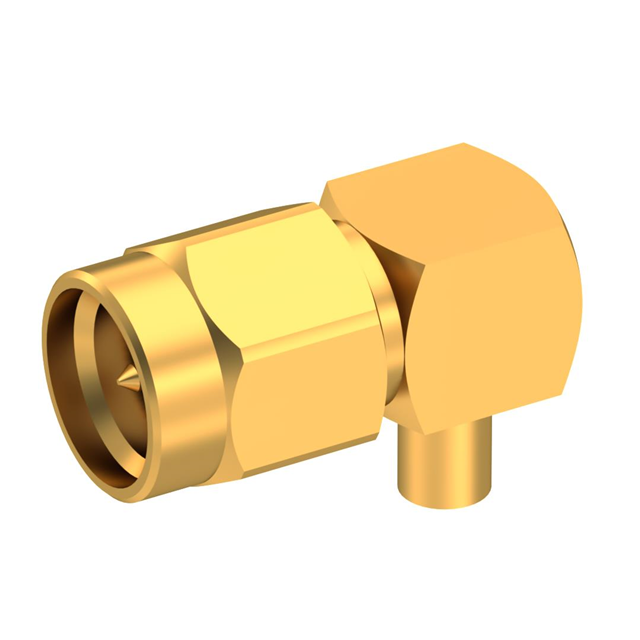

R125153000W
ActiveRadiall USA, Inc.
SMA / RIGHT ANGLE PLUG SOLER TYP
Deep-Dive with AI
Search across all available documentation for this part.
R125153000W
ActiveRadiall USA, Inc.
SMA / RIGHT ANGLE PLUG SOLER TYP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R125153000W |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.89 | |
| 10 | $ 12.23 | |||
| 25 | $ 11.07 | |||
| 50 | $ 10.28 | |||
| 100 | $ 9.56 | |||
| 250 | $ 8.97 | |||
Description
General part information
R12515 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
