R125154901

Active

Radiall USA, Inc.

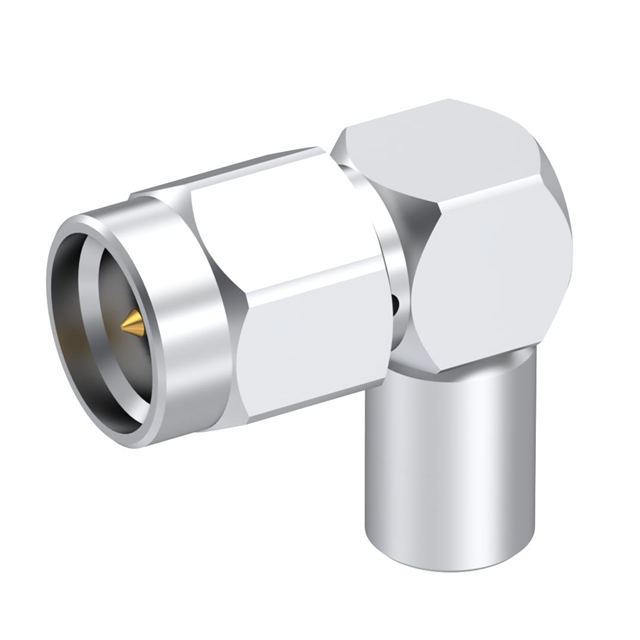

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

R125154901

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125154901

Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

R12515 Series

Part	Impedance	Mounting Type	Body Finish	Dielectric Material	Shield Termination	Center Contact Material	Body Material	Mating Cycles	Cable Group	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Number of Ports	Housing Color	Connector Type
Radiall USA, Inc. R125153002	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)	1 Connector 1 End Cap	-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154002	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154901	50 Ohms	Free Hanging (In-Line) Right Angle		Polytetrafluoroethylene (PTFE)	Crimp	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	500 V	18 GHz	Gold	Crimp	1	Silver	Male Pin Plug
Radiall USA, Inc. R125154000	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500			-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125154000W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel				-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153002W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	335 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153901	50 Ohms	Free Hanging (In-Line) Right Angle		Polytetrafluoroethylene (PTFE)	Crimp	Brass		500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	335 V	18 GHz	Gold	Crimp	1	Silver	Male Pin Plug
Radiall USA, Inc. R125154002W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel				-65 ░C	105 ░C	SMA	500 V	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug
Radiall USA, Inc. R125153000W	50 Ohms	Free Hanging (In-Line) Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Brass	Stainless Steel	500	RG-405 (.085" Semi Rigid)		-65 ░C	105 ░C	SMA	250 VDC	12.4 GHz	Gold	Solder	1	Gold	Male Pin Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 72.28

Description

General part information

R12515 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Documents

Technical documentation and resources

No documents available
