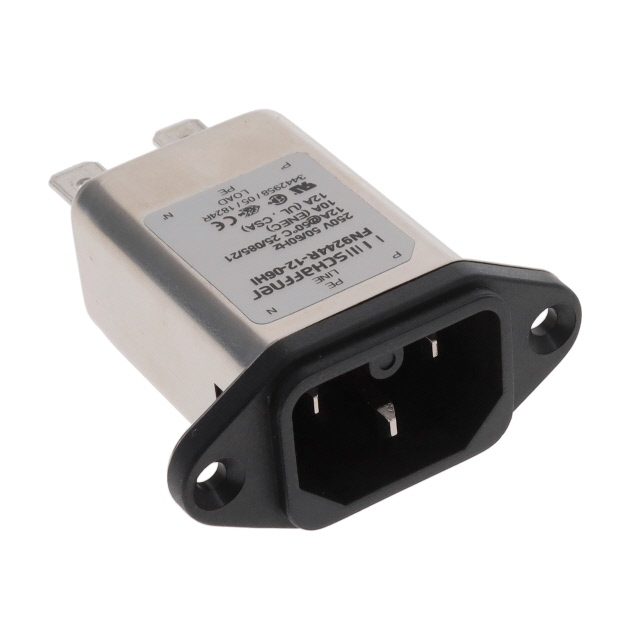

FN9244R-12-06HI
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C16 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
FN9244R-12-06HI
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C16 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9244R-12-06HI |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, ENEC, CSA |
| Connector Style | IEC 320-C16 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 12 A |
| Features | Front or Rear Side Mount, Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.37 | |
| 10 | $ 11.04 | |||
| 25 | $ 9.98 | |||
| 40 | $ 9.49 | |||
| 80 | $ 8.82 | |||
| 230 | $ 7.92 | |||
| 440 | $ 7.42 | |||
| 945 | $ 6.90 | |||
Description
General part information
Schaffner FN9244 Series
12 A, Unfiltered, 310 µA Leakage Current @ 250VAC, 50Hz, FASTON, 180 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9244, Inlet Filters
