FN9244SR-1-06

Active

TE Connectivity Raychem Cable Protection

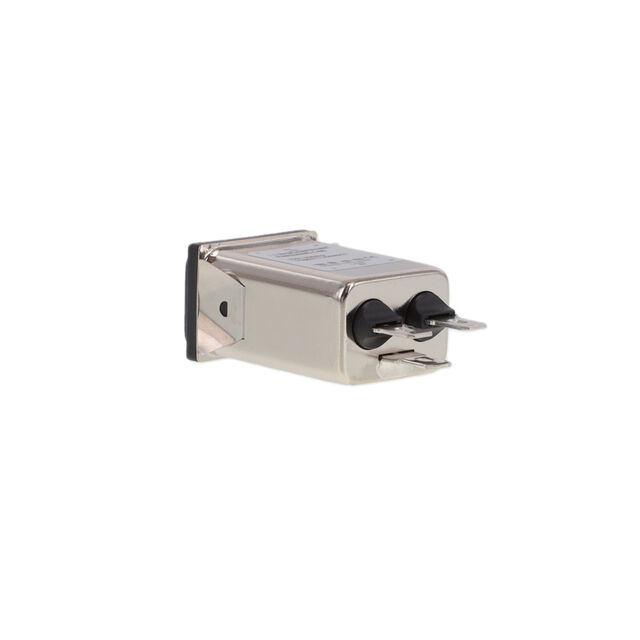

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9244SR-1-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9244SR-1-06

Accomodates a Fuse	False
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	1 A
Features	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Max]	1.5 mm
Panel Thickness [Min]	0.028 in
Panel Thickness [Min]	0.7 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9244 Series

...

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Material Flammability Rating	Approval Agency	Connector Type	Current Rating - Filter	Ingress Protection	Filter Type	Features	Connector Style	Termination	Termination	Termination	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9244ES-15-06	20.8 mm	29.4 mm	Panel Mount Snap-In	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	15 A	IP40	Filtered (EMI RFI) - Commercial	Earth Line Choke	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	0.028 in	0.059 in	0.7 mm	1.5 mm
TE Connectivity Raychem Cable Protection FN9244EU-1-06			Flange Panel Mount	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	1 A	IP40	Filtered (EMI RFI) - Commercial	Earth Line Choke Front or Rear Side Mount	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244EB-6-06			Flange Panel Mount	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	6 A	IP40	Filtered (EMI RFI) - Commercial Medical	Bleed Resistor Earth Line Choke Front or Rear Side Mount	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244ER-1-06			Flange Panel Mount	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	1 A	IP40	Filtered (EMI RFI) - Commercial	Bleed Resistor Earth Line Choke Front or Rear Side Mount	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244S-15-06	20.8 mm	29.4 mm	Panel Mount Snap-In	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	15 A	IP40	Filtered (EMI RFI) - Commercial		IEC 320-C14	0.25 in	6.3 mm	Quick Connect	0.028 in	0.059 in	0.7 mm	1.5 mm
TE Connectivity Raychem Cable Protection FN9244R-12-06HI			Flange Panel Mount	UL94 V-2	CSA ENEC UL	Male Blades Receptacle	12 A	IP40	Filtered (EMI RFI) - Commercial	Bleed Resistor Front or Rear Side Mount	IEC 320-C16	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244ER-15-06HI			Flange Panel Mount	UL94 V-2	CSA ENEC UL	Male Blades Receptacle	15 A	IP40	Filtered (EMI RFI) - Commercial	Bleed Resistor Earth Line Choke Front or Rear Side Mount	IEC 320-C16	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244SR-1-06	20.8 mm	29.4 mm	Panel Mount Snap-In	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	1 A	IP40	Filtered (EMI RFI) - Commercial	Bleed Resistor	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	0.028 in	0.059 in	0.7 mm	1.5 mm
TE Connectivity Raychem Cable Protection FN9244-10-06			Flange Panel Mount	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	10 A	IP40	Filtered (EMI RFI) - Commercial	Front or Rear Side Mount	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9244-8-06			Flange Panel Mount	UL94 V-2	CQC CSA ENEC UL	Male Blades Receptacle	8 A	IP40	Filtered (EMI RFI) - Commercial	Front or Rear Side Mount	IEC 320-C14	0.25 in	6.3 mm	Quick Connect

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.26
		10	$ 4.80
		25	$ 4.33
		40	$ 4.12
		80	$ 3.92

Description

General part information

Schaffner FN9244 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
