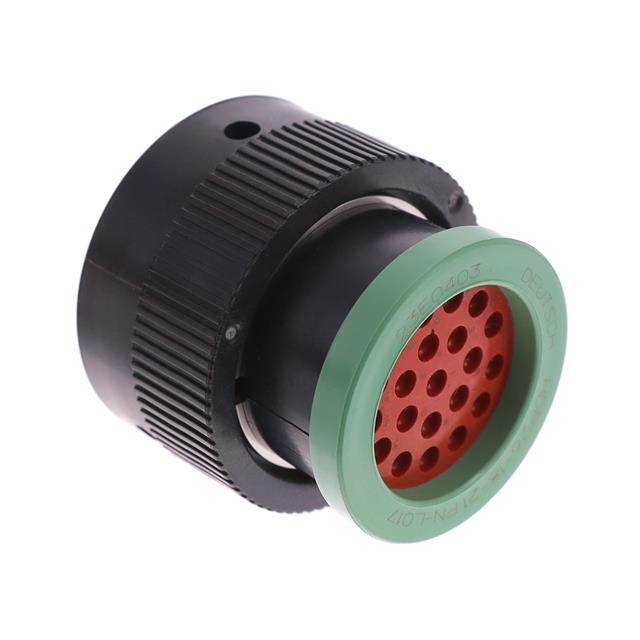

HDP26-18-21PN-L017
ActiveTE Connectivity Raychem Cable Protection
PLG, 21P, BLK, N, RNG, 20, P
Deep-Dive with AI
Search across all available documentation for this part.
HDP26-18-21PN-L017
ActiveTE Connectivity Raychem Cable Protection
PLG, 21P, BLK, N, RNG, 20, P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP26-18-21PN-L017 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 21 |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 21 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert [Max] | 21 |
| Shell Size - Insert [Min] | 18 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.70 | |
| 10 | $ 15.34 | |||
| 25 | $ 14.54 | |||
| 50 | $ 14.32 | |||
| 100 | $ 12.64 | |||
| 250 | $ 11.80 | |||
| 500 | $ 11.54 | |||
Description
General part information
DEUTSCH HDP Series
21 Position Housing, Housing for Male Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid
