HDP24-24-31SE-L015
ActiveTE Connectivity Raychem Cable Protection

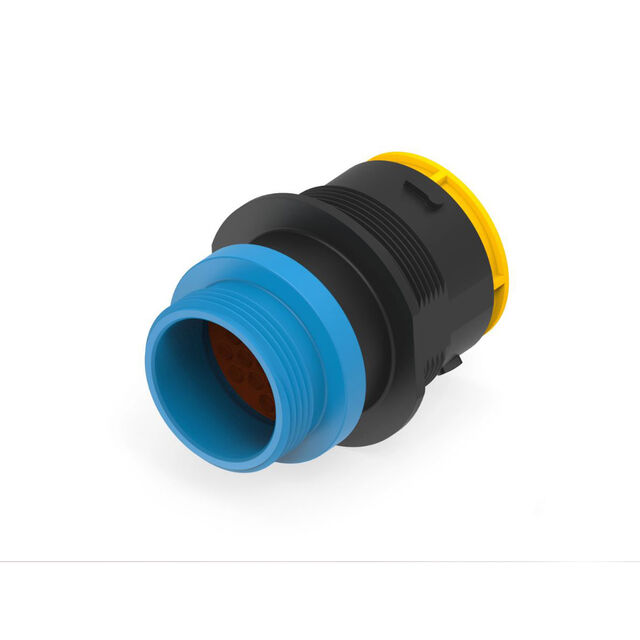

REC, 31P, BLK, E, THD, 16, S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP24-24-31SE-L015 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Features | Thread Adapter, Dust Cap |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 31 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert [Max] | 31 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Unshielded |
| Type | For Female Sockets |
DEUTSCH HDP Series
| Part | Contact Size | Ingress Protection | Note | Orientation | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Shape | Insert Material | Contact Type | Fastening Type | Shell Material | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Features | Housing Color | Shielding | Type | Primary Material | Shell Size - Insert | Material Flammability Rating | Mounting Feature | Number of Positions | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 16 | IP68 - Dust Tight Waterproof | Contacts Not Included | Keyed | Plug Housing | -55 °C | 125 °C | 31 | Circular | Polyetherimide (PEI) | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | Free Hanging (In-Line) | 31 | 24 | Coupling Nut Threading Adapter | Black Blue | Unshielded | For Female Sockets | ||||||
TE Connectivity Raychem Cable Protection | 16 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Plug Housing | -55 °C | 125 °C | 14 | Circular | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | Free Hanging (In-Line) | Coupling Nut Ring Adapter | Black | Unshielded | For Male Pins | Plastic | 18-14 | UL94 V-0 | ||||||
TE Connectivity Raychem Cable Protection | 12 16 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | 21 | Circular | Nylon Polyamide (PA) | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | Ring Adapter | Black | Unshielded | For Female Sockets | Plastic | 24-21 | UL94 V-1 | Bulkhead - Front Side Nut | |||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 12 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | Circular | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | 16 | 24 | Ring Adapter | Black | Unshielded | For Male Pins | Plastic | UL94 V-1 | Bulkhead - Front Side Nut | 16 | |||||
TE Connectivity Raychem Cable Protection | 16 20 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | 35 | Circular | Nylon Polyamide (PA) | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | 35 | 24 | Black | Unshielded | For Female Sockets | Plastic | UL94 V-1 | Bulkhead - Front Side Nut | |||||
TE Connectivity Raychem Cable Protection | 16 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | 31 | Circular | Nylon Polyamide (PA) | Crimp | Polyamide (PA66) Nylon 6/6 Glass Filled | 31 | 24 | Dust Cap Thread Adapter | Black | Unshielded | For Female Sockets | Plastic | UL94 V-1 | Bulkhead - Front Side Nut | |||||
TE Connectivity Raychem Cable Protection | 16 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | 23 | Circular | Glass Filled Nylon 6/6 Polyamide (PA66) | Crimp | Polyamide (PA66) Nylon 6/6 Glass Filled | 24 | 23 | Dust Cap Thread Adapter | Black | Unshielded | For Male Pins | Plastic | UL94 V-0 | Bulkhead - Front Side Nut | |||||
TE Connectivity Raychem Cable Protection | 20 | IP67 - Dust Tight Waterproof | Contacts Not Included Jam Nut Not Included | Keyed | Plug Housing | -55 °C | 125 °C | 21 | Circular | Polyamide (PA) Nylon Glass Filled | Crimp | Bayonet Lock | Polyamide (PA66) Nylon 6/6 Glass Filled | Free Hanging (In-Line) | 21 | 18 | Coupling Nut | Black | Unshielded | For Male Pins | Plastic | UL94 V-0 | 21 | |||
TE Connectivity Raychem Cable Protection | 12 16 | IP67 - Dust Tight Waterproof | Contacts Not Included | Keyed | Receptacle Housing | -55 °C | 125 °C | 21 | Circular | Glass Filled Nylon 6/6 Polyamide (PA66) | Crimp | Polyamide (PA66) Nylon 6/6 Glass Filled | Dust Cap Thread Adapter | Black | Unshielded | For Female Sockets | Plastic | 24-21 | UL94 V-0 | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.23 | |
| 10 | $ 17.92 | |||
| 25 | $ 16.23 | |||
| 40 | $ 15.45 | |||
| 80 | $ 14.38 | |||
| 230 | $ 13.71 | |||
Description
General part information
DEUTSCH HDP Series
31 Position Housing, Housing for Female Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F]
