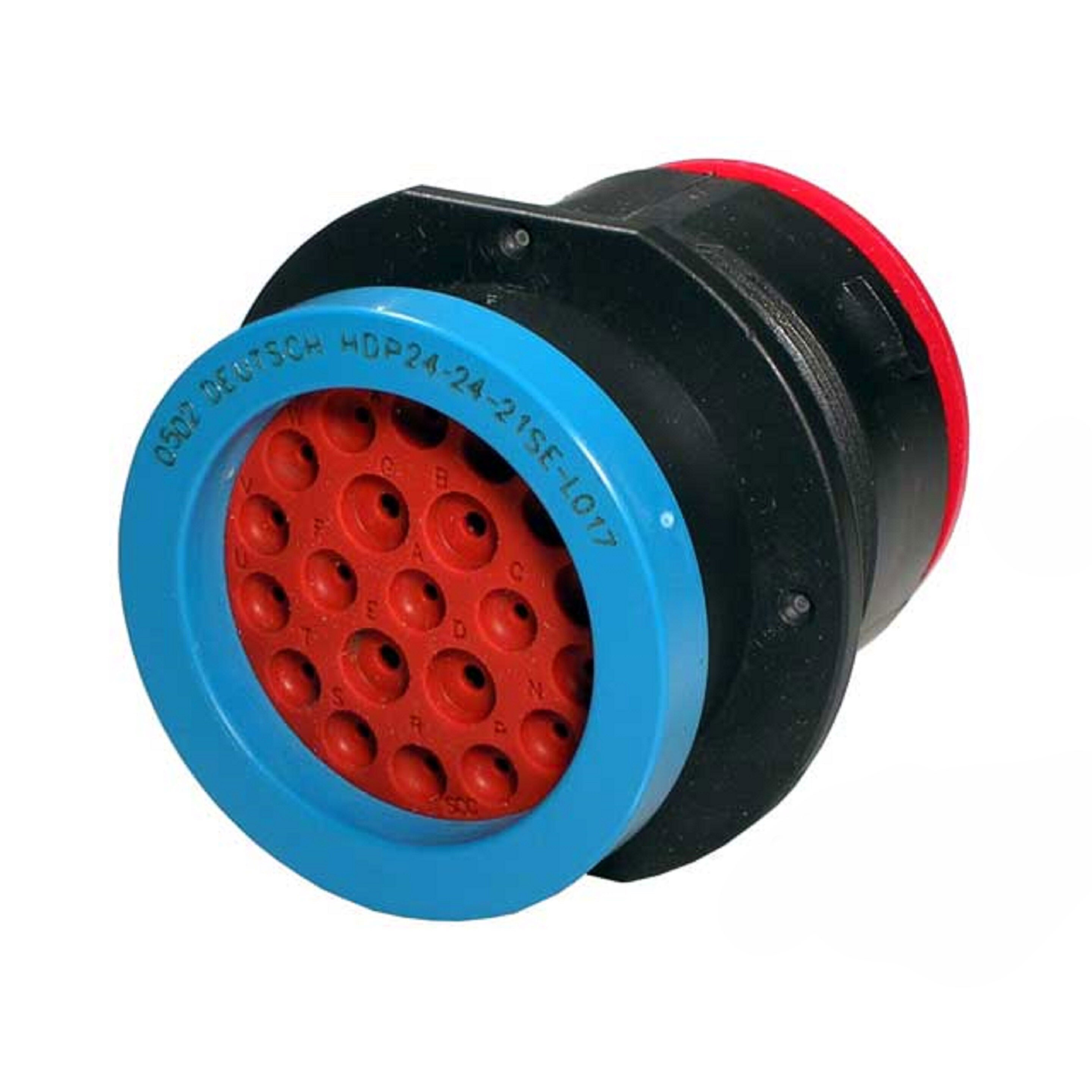

HDP24-24-21SE-L017
ActiveTE Connectivity Raychem Cable Protection
CONN CIRCULAR SKT 21 POS CRIMP ST JAM NUT 21 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
HDP24-24-21SE-L017
ActiveTE Connectivity Raychem Cable Protection
CONN CIRCULAR SKT 21 POS CRIMP ST JAM NUT 21 TERMINAL 1 PORT BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP24-24-21SE-L017 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 12, 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Ring Adapter |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 21 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert | 24-21 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.99 | |
| 10 | $ 17.51 | |||
| 30 | $ 16.75 | |||
| 60 | $ 16.21 | |||
| 90 | $ 15.67 | |||
| 240 | $ 14.81 | |||
| 450 | $ 14.37 | |||
Description
General part information
DEUTSCH HDP Series
21 Position Housing, Housing for Female Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, Hybrid
