QRM8-026-02.0-L-D-A-GP

Active

Samtec Inc.

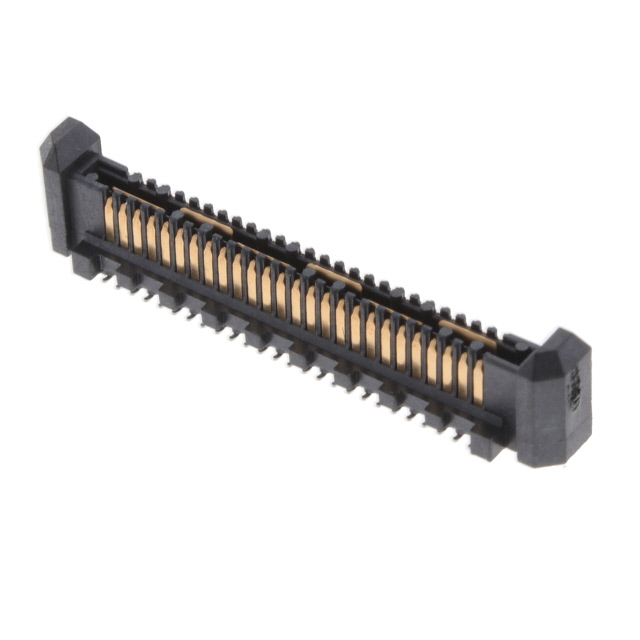

MEZZANINE CONN, HDR, 52POS, 2ROW, 0.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +4

QRM8-026-02.0-L-D-A-GP

Active

Samtec Inc.

MEZZANINE CONN, HDR, 52POS, 2ROW, 0.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QRM8-026-02.0-L-D-A-GP

Connector Type	Male Pins, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board [z]	0.189 in
Height Above Board [z]	4.8 mm
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QRM8-026 Series

Part	Connector Type	Number of Rows	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. QRM8-026-01-L-RA-GP	Array Male Pins	2	Surface Mount Right Angle	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52
Samtec Inc. QRM8-026-05.0-S-D-A-GP-K-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52	Board Guide Ground Bus (Plane) Pick and Place	0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-05.0-S-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-02.0-L-D-A-K-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52	Board Guide Ground Bus (Plane) Pick and Place			7 mm 9 mm	0.189 in	4.8 mm
Samtec Inc. QRM8-026-05.0-S-D-A	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-05.0-L-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-02.0-L-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52				7 mm 9 mm	0.189 in	4.8 mm
Samtec Inc. QRM8-026-01-S-RA-GP	Array Male Pins	2	Surface Mount Right Angle	Gold	0.8 mm	0.031 in			52
Samtec Inc. QRM8-026-05.0-L-D-A-GP-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-07.0-L-D-A	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.385 in	9.78 mm				12 mm 14 mm
