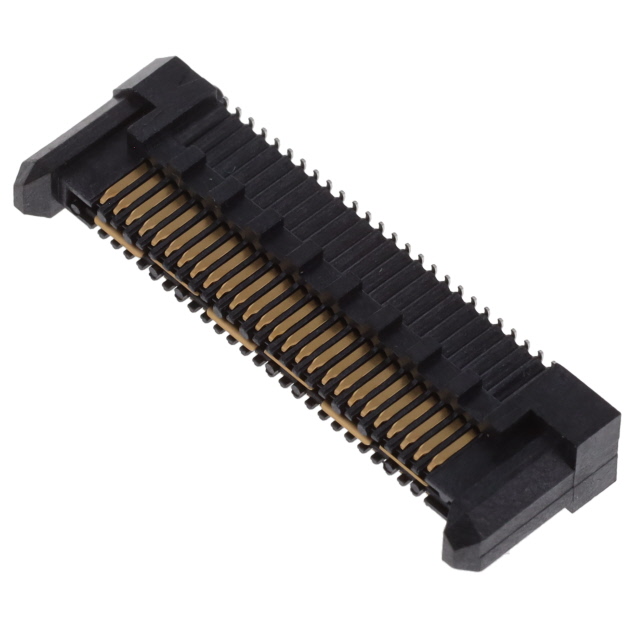

QRM8-026-05.0-L-D-A-GP

Active

Samtec Inc.

CONN RCPT 52POS DUAL .8MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QRF8 Series Other Related Documents 03 +2

QRM8-026-05.0-L-D-A-GP

Active

Samtec Inc.

CONN RCPT 52POS DUAL .8MM SMD

Deep-Dive with AI

DocumentsDatasheet QRF8 Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QRM8-026-05.0-L-D-A-GP

Connector Type	Male Pins, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	0.307 in
Height Above Board	7.8 mm
Mated Stacking Heights	10 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QRM8-026 Series

Part	Connector Type	Number of Rows	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. QRM8-026-01-L-RA-GP	Array Male Pins	2	Surface Mount Right Angle	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52
Samtec Inc. QRM8-026-05.0-S-D-A-GP-K-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52	Board Guide Ground Bus (Plane) Pick and Place	0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-05.0-S-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-02.0-L-D-A-K-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52	Board Guide Ground Bus (Plane) Pick and Place			7 mm 9 mm	0.189 in	4.8 mm
Samtec Inc. QRM8-026-05.0-S-D-A	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in			52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-05.0-L-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-02.0-L-D-A-GP	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52				7 mm 9 mm	0.189 in	4.8 mm
Samtec Inc. QRM8-026-01-S-RA-GP	Array Male Pins	2	Surface Mount Right Angle	Gold	0.8 mm	0.031 in			52
Samtec Inc. QRM8-026-05.0-L-D-A-GP-TR	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.307 in	7.8 mm	10 mm 12 mm
Samtec Inc. QRM8-026-07.0-L-D-A	Array Male Pins	2	Surface Mount	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	52		0.385 in	9.78 mm				12 mm 14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	80	$ 10.41
		160	$ 9.74

Description

General part information

QRM8-026 Series

52 Position Connector Array, Male Pins Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

QRF8 Series Other Related Documents 03

0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Differential Pair

QRM8-018-05.0-L-D-DP-A Datasheet 02

Datasheet
