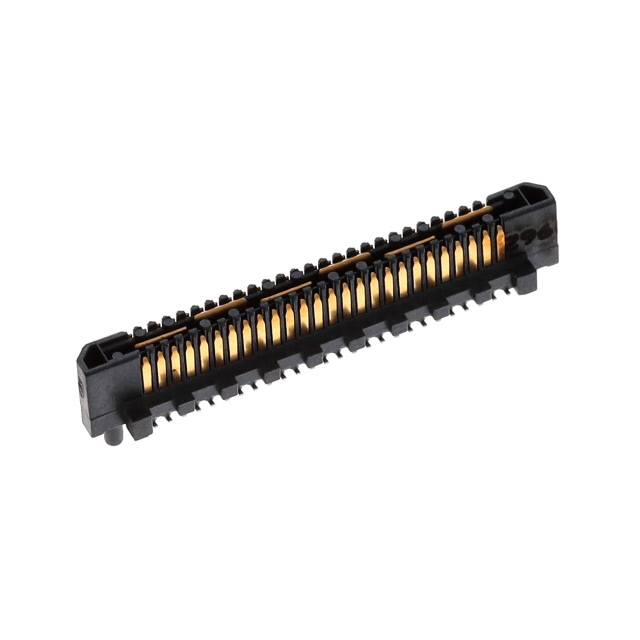

QRM8-026-02.0-L-D-A-K-TR
ActiveSamtec Inc.
CONN HIGH SPEED TERMINAL STRIP HDR 52 POS 0.8MM SOLDER ST TOP ENTRY SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
QRM8-026-02.0-L-D-A-K-TR
ActiveSamtec Inc.
CONN HIGH SPEED TERMINAL STRIP HDR 52 POS 0.8MM SOLDER ST TOP ENTRY SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QRM8-026-02.0-L-D-A-K-TR |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Height Above Board [z] | 0.189 in |
| Height Above Board [z] | 4.8 mm |
| Mated Stacking Heights | 7 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.20 | |
| 10 | $ 10.35 | |||
| 25 | $ 9.78 | |||
| 50 | $ 9.43 | |||
| 100 | $ 7.72 | |||
| Digi-Reel® | 1 | $ 11.20 | ||
| 10 | $ 10.35 | |||
| 25 | $ 9.78 | |||
| 50 | $ 9.43 | |||
| 100 | $ 7.72 | |||
| Tape & Reel (TR) | 550 | $ 7.15 | ||
| 1100 | $ 6.89 | |||
Description
General part information
QRM8-026 Series
52 Position Connector Array, Male Pins Surface Mount Gold
