E2271FS091

Obsolete

Pervasive Displays

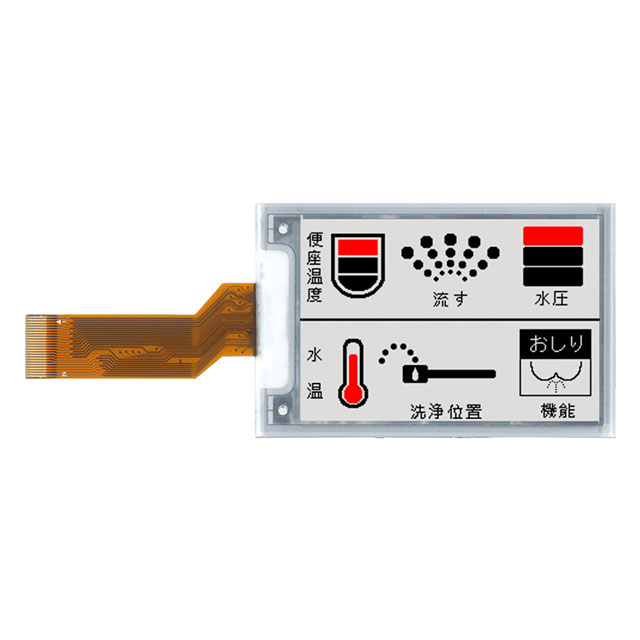

DISPLAY 2.7" SPECTRA R1.2

Search across all available documentation for this part.

Obsolete

Pervasive Displays

DISPLAY 2.7" SPECTRA R1.2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2271FS091	E2271 Series

Background Color	-	White
Backlight	-	Without Backlight
Diagonal Screen Size	2.7 "	2.7 - 2.71 "
Diagonal Screen Size	68.58 mm	68.58 - 68.83 mm
Display Mode	-	Reflective
Display Type	TFT - Color	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.22 mm	0.22 mm
Dot Pitch [y]	0.22 mm	0.22 mm
Dot Pixels [x]	264	264
Dot Pixels [y]	176	176
Graphics Color	Black, Red, White	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	57.29 mm	57.29 mm
Viewing Area [y]	38.19 mm	38.19 mm

DISPLAY 2.7" B&W AURORA MB EC

Part	Display Mode	Interface	Display Type	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Background Color	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Backlight	Dot Pitch [y]	Dot Pitch [x]
Pervasive Displays E2271CS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight
Pervasive Displays E2271FS091		SPI	TFT - Color	2.7 "	68.58 mm	38.19 mm	57.29 mm		Black, Red, White	176	264		0.22 mm	0.22 mm
Pervasive Displays E2271CS091	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.71 in	68.83 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271PS091		SPI	TFT - Color	2.71 in	68.83 mm				Black, White	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271BS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.18

General part information

Graphic LCD Display Module Black, Red, White TFT - Color SPI 2.7" (68.58mm) 264 x 176
