E2271CS021

Unknown

Pervasive Displays

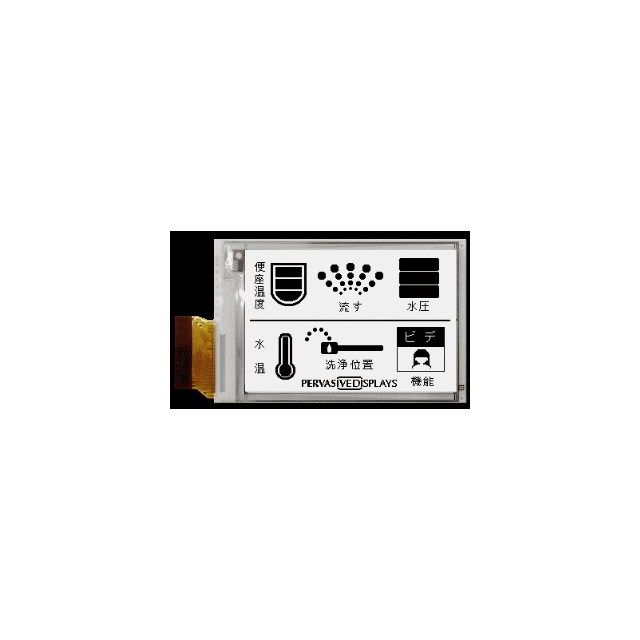

DISPLAY 2.7" B&W AURORA MB EC

Search across all available documentation for this part.

Unknown

Pervasive Displays

DISPLAY 2.7" B&W AURORA MB EC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.94

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 2.7" (68.58mm) 264 x 176

Technical documentation and resources

Specification	E2271CS021	E2271 Series

Background Color	White	White
Backlight	Without Backlight	Without Backlight
Diagonal Screen Size	2.7 "	2.7 - 2.71 "
Diagonal Screen Size	68.58 mm	68.58 - 68.83 mm
Display Mode	Reflective	Reflective
Display Type	TFT - Electronic Paper Display (EPD)	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch	-	0.22 mm
Dot Pitch	-	0.22 mm
Dot Pixels [x]	264	264
Dot Pixels [y]	176	176
Graphics Color	Black	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	57.29 mm	57.29 mm
Viewing Area [y]	38.19 mm	38.19 mm

Part	Display Mode	Interface	Display Type	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Background Color	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Backlight	Dot Pitch [y]	Dot Pitch [x]
Pervasive Displays E2271CS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight
Pervasive Displays E2271FS091		SPI	TFT - Color	2.7 "	68.58 mm	38.19 mm	57.29 mm		Black, Red, White	176	264		0.22 mm	0.22 mm
Pervasive Displays E2271CS091	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.71 in	68.83 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271PS091		SPI	TFT - Color	2.71 in	68.83 mm				Black, White	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271BS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight
