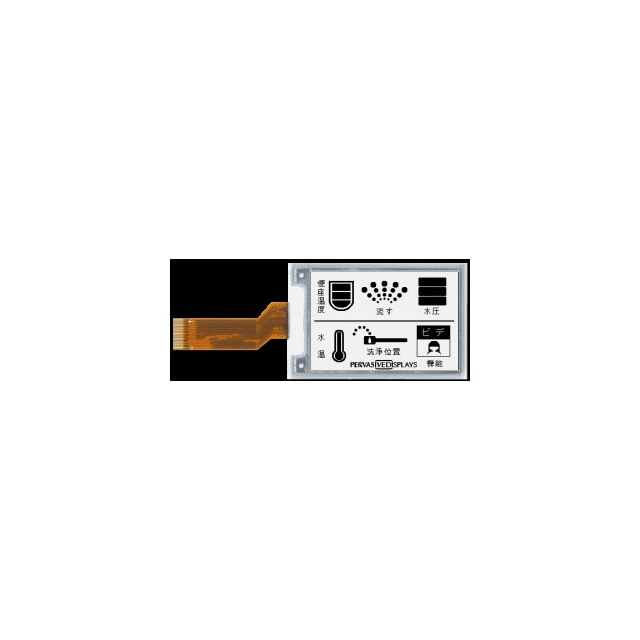

E2271CS091

Unknown

Pervasive Displays

2.7" EPD, A-MB W.ITC

Search across all available documentation for this part.

Unknown

Pervasive Displays

2.7" EPD, A-MB W.ITC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2271CS091	E2271 Series

Background Color	White	White
Backlight	Without Backlight	Without Backlight
Diagonal Screen Size	68.83 mm	68.58 - 68.83 mm
Diagonal Screen Size	2.71 in	2.7 - 2.71 "
Display Mode	Reflective	Reflective
Display Type	TFT - Electronic Paper Display (EPD)	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.22 mm	0.22 mm
Dot Pitch [y]	0.22 mm	0.22 mm
Dot Pixels [x]	264	264
Dot Pixels [y]	176	176
Graphics Color	Black	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	57.29 mm	57.29 mm
Viewing Area [y]	38.19 mm	38.19 mm

DISPLAY 2.7" B&W AURORA MB EC

Part	Display Mode	Interface	Display Type	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Background Color	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Backlight	Dot Pitch [y]	Dot Pitch [x]
Pervasive Displays E2271CS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight
Pervasive Displays E2271FS091		SPI	TFT - Color	2.7 "	68.58 mm	38.19 mm	57.29 mm		Black, Red, White	176	264		0.22 mm	0.22 mm
Pervasive Displays E2271CS091	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.71 in	68.83 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271PS091		SPI	TFT - Color	2.71 in	68.83 mm				Black, White	176	264	Without Backlight	0.22 mm	0.22 mm
Pervasive Displays E2271BS021	Reflective	SPI	TFT - Electronic Paper Display (EPD)	2.7 "	68.58 mm	38.19 mm	57.29 mm	White	Black	176	264	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	204	$ 9.18

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 2.71" (68.83mm) 264 x 176

Technical documentation and resources

No documents available
