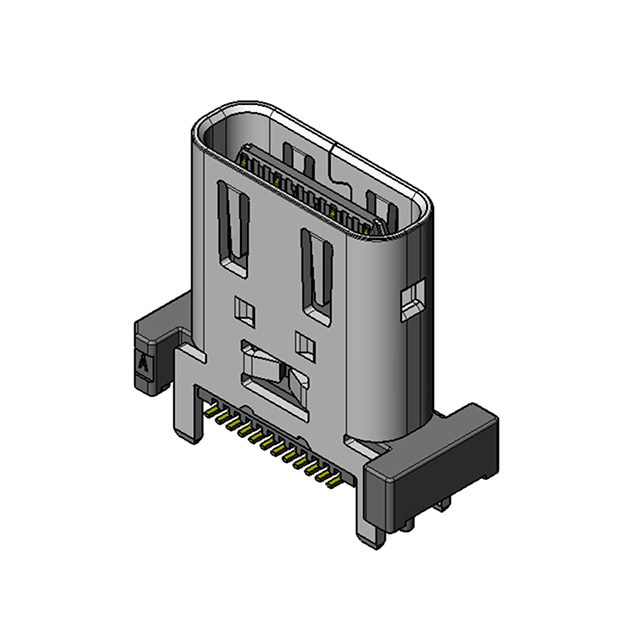

Specification	DX07S024WJ3R400

Connector Type	USB-C (USB TYPE-C)
Current Rating	5 A
Features	Board Guide
Gender	Receptacle
Insulation Color	Black
Mating Cycles	10000 cycles
Mounting Feature	Vertical
Mounting Type	Surface Mount, Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Shielding	Unshielded
Specifications	Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2
Termination	Solder
Voltage - Rated	48 VDC

DX07S024 Series

Part	Number of Ports	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Number of Contacts	Current Rating Options	Voltage - Rated	Connector Type	Features	Mounting Feature	Termination	Gender	Mating Cycles	Specifications	Mounting Type	Contact Finish	Shell/Shielding Material	Insulation Color	Current Rating
JAE Electronics DX07S024JJ3R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Pick and Place	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JJ1R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JA1R1300	1	-30 °C	80 °C	Shielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black	5 A
JAE Electronics DX07S024JJ2R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Pick and Place	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JAAR1100	1			Shielded	24		48 VDC	USB-C (USB TYPE-C)		Horizontal	Solder	Receptacle		USB 4.0	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JJ7R1200	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	20 V	USB-C (USB TYPE-C)	Board Lock	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024WJ3R400	1	-30 °C	80 °C	Unshielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Vertical	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Surface Mount Through Hole			Black	5 A
JAE Electronics DX07S024JJ4R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Board Lock	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024XJ1R1100	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A 5A	48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024WJ1R350	1	-30 °C	80 °C	Unshielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Vertical	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Surface Mount Through Hole	Gold	Stainless Steel	Black	5 A
