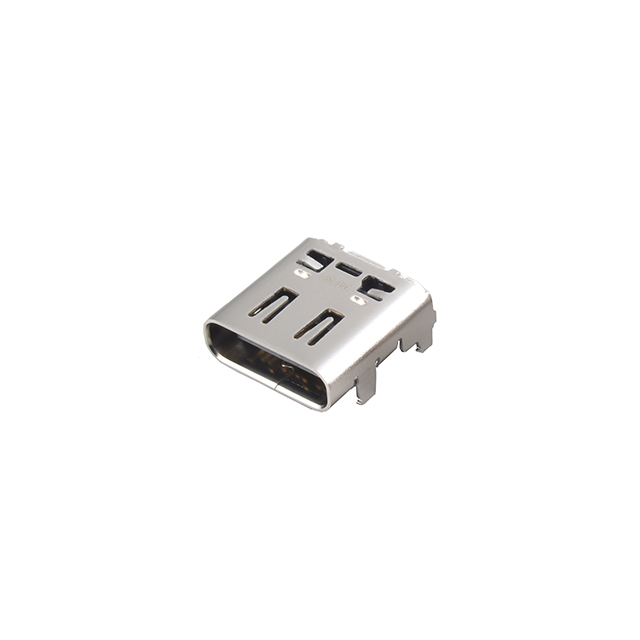

DX07S024JAAR1100

Active

JAE Electronics

CONN RCPT USB4 TYPC 24POS SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DX07S024JAAR1100

Active

JAE Electronics

CONN RCPT USB4 TYPC 24POS SMD RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DX07S024JAAR1100

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 4.0
Termination	Solder
Voltage - Rated	48 V

DX07S024 Series

Part	Current Rating (Amps)	Gender	Mounting Type	Number of Contacts	Termination	Connector Type	Shielding	Contact Finish	Insulation Color	Shell/Shielding Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Specifications	Features	Mating Cycles	Number of Ports	Voltage - Rated
JAE Electronics DX07S024JJ3R1300	0.25 A 1.25 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Pick and Place	10000	1	48 V
JAE Electronics DX07S024JJ1R1300	0.25 A 1.25 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Guide	10000	1	48 V
JAE Electronics DX07S024JA1R1300	5 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Guide	10000	1	48 V
JAE Electronics DX07S024JJ2R1300	0.25 A 1.25 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Pick and Place	10000	1	48 V
JAE Electronics DX07S024JAAR1100		Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel			Horizontal	USB 4.0			1	48 V
JAE Electronics DX07S024WJ3R400	5 A	Receptacle	Surface Mount Through Hole	24	Solder	USB-C (USB TYPE-C)	Unshielded		Black		-30 ░C	80 C	Vertical	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Guide	10000	1	48 V
JAE Electronics DX07S024JJ4R1300	0.25 A 1.25 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))		10000	1	48 V
JAE Electronics DX07S024XJ1R1100	0.25 A 1.25 A	Receptacle	Surface Mount Right Angle Through Hole	24	Solder	USB-C (USB TYPE-C)	Shielded	Gold	Black	Stainless Steel	-30 ░C	80 C	Horizontal	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Guide	10000	1	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.58
		10	$ 2.73
		25	$ 2.46
		50	$ 2.28
		100	$ 2.11
		250	$ 1.91
		500	$ 1.78
	Digi-Reel®	1	$ 3.58
		10	$ 2.73
		25	$ 2.46
		50	$ 2.28
		100	$ 2.11
		250	$ 1.91
		500	$ 1.78
	Tape & Reel (TR)	1100	$ 1.64
		2200	$ 1.54
		3300	$ 1.48
		5500	$ 1.42

Description

General part information

DX07S024 Series

USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
