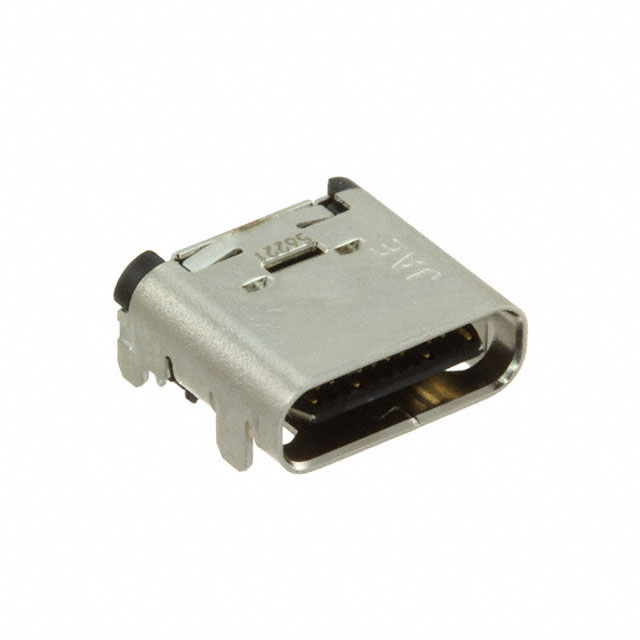

Specification	DX07S024JJ2R1300

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating Options	1.25A, 0.25A
Features	Pick and Place
Gender	Receptacle
Insulation Color	Black
Mating Cycles	10000 cycles
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle, Surface Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Shell/Shielding Material	Steel, Stainless
Shielding	Shielded
Specifications	Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2
Termination	Solder
Voltage - Rated	48 VDC

DX07S024 Series

Part	Number of Ports	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Number of Contacts	Current Rating Options	Voltage - Rated	Connector Type	Features	Mounting Feature	Termination	Gender	Mating Cycles	Specifications	Mounting Type	Contact Finish	Shell/Shielding Material	Insulation Color	Current Rating
JAE Electronics DX07S024JJ3R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Pick and Place	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JJ1R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JA1R1300	1	-30 °C	80 °C	Shielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black	5 A
JAE Electronics DX07S024JJ2R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Pick and Place	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JAAR1100	1			Shielded	24		48 VDC	USB-C (USB TYPE-C)		Horizontal	Solder	Receptacle		USB 4.0	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024JJ7R1200	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	20 V	USB-C (USB TYPE-C)	Board Lock	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024WJ3R400	1	-30 °C	80 °C	Unshielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Vertical	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Surface Mount Through Hole			Black	5 A
JAE Electronics DX07S024JJ4R1300	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A	48 VDC	USB-C (USB TYPE-C)	Board Lock	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024XJ1R1100	1	-30 °C	80 °C	Shielded	24	0.25A 1.25A 5A	48 VDC	USB-C (USB TYPE-C)	Board Guide	Horizontal	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Right Angle Surface Mount Through Hole	Gold	Stainless Steel	Black
JAE Electronics DX07S024WJ1R350	1	-30 °C	80 °C	Unshielded	24		48 VDC	USB-C (USB TYPE-C)	Board Guide	Vertical	Solder	Receptacle	10000 cycles	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Surface Mount Through Hole	Gold	Stainless Steel	Black	5 A
