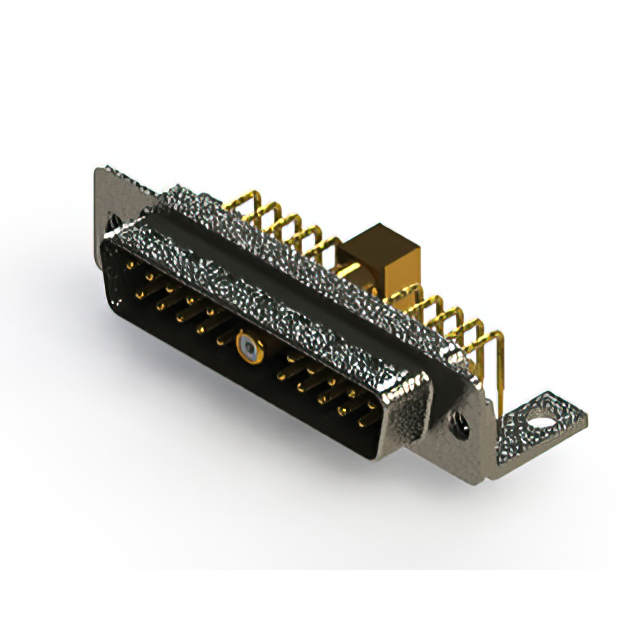

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-21W1, PLUG, 21 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-21W1640-7N4
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-21W1, PLUG, 21 CONTACTS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-21W1640-7N4 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Coax |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-21W Series
...
| Part | Contact Finish | Current Rating (Amps) | Flange Feature | Number of Rows | Features | Shell Size, Connector Layout | Color | Contact Type | Shell Material, Finish | Dielectric Material | Number of Positions [custom] | Number of Positions [custom] | Material Flammability Rating | Voltage Rating | Mounting Type | Termination | Contact Finish Thickness | Connector Type | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 5 A 40 A | M3 | 2 | Grounding Indents Mounting Brackets | 21WA4 4 (DC C) | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Flash | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | ||||||
EDAC Inc. | Gold | 5 A 20 A | Housing/Shell (M3) | 2 | Grounding Indents Mounting Brackets | 21WA4 4 (DC C) | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | |||||
EDAC Inc. | Gold | Housing/Shell (4-40) | 2 | Grounding Indents Mounting Brackets | 3 (DB B) - 21W1 | Black | Coax Signal | Nickel Plated Steel | Polyester Thermoplastic | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | 21 | |||||||
EDAC Inc. | Gold | 5 A 30 A | Board Side (M3) | 2 | Grounding Indents | 21WA4 4 (DC C) | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Flash | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | ||||||
EDAC Inc. | Gold | 5 A 30 A | Housing/Shell (M3) | 2 | Board Lock Grounding Indents Mounting Brackets | 21WA4 4 (DC C) | Black | Signal and Power | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | ||||||
EDAC Inc. | Gold | 5 A 20 A | 4-40 | 2 | Board Lock Grounding Indents Mounting Brackets | 21WA4 4 (DC C) | Black | Signal and Power | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Flash | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | |||||||
EDAC Inc. | Gold | Housing/Shell (4-40) | 2 | Board Lock Grounding Indents Mounting Brackets | 3 (DB B) - 21W1 | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 1 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | 20 | 21 | 10A 5A | ||||
EDAC Inc. | Gold | 4-40 | 2 | Board Lock Grounding Indents Mounting Brackets | 3 (DB B) - 21W1 | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 1 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | 20 | 21 | 10A 5A | ||||
EDAC Inc. | Gold | Housing/Shell (M3) | 2 | Board Lock Grounding Indents Mounting Brackets | 3 (DB B) - 21W1 | Black | Signal and Power | Polyester Thermoplastic | 1 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | 20 | 21 | 10A 5A | |||||
EDAC Inc. | Gold | 5 A 30 A | M3 | 2 | Grounding Indents Mounting Brackets | 21WA4 4 (DC C) | Black | Signal and Power | Nickel Plated Steel | Polyester Thermoplastic | 17 | 4 | UL94 V-0 | 125 VDC | Through Hole Right Angle | Solder | Flash | Male Pins Plug | Combo D-Sub | -55 °C | 125 °C | Copper Alloy | 9.4 mm | 0.37 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
629-21W Series
21 (20 + 1 Coax) Position D-Sub, Combo Plug, Male Pins Connector
